# Two Minute IoT
## Up and running in two minutes with Mongoose OS and AWS IoT

.bottom.right[
Christopher Biggs, .logo[Accelerando Consulting]
<br>.logo[@accelerando_au]
]

---
layout: true
class: bulletsh4
.header[.floatleft[.teal[Christopher Biggs] — Two Minute IoT].floatright[.logo[@accelerando_au]]] .footer[.floatleft[BrisJS Jul 2017]]
.crumb[
# Agenda
]

---
.fig50[
![](platform-of-sticks.jpg)]

# Platform Desiderata

#### Well documented, multi-supplier
#### Comprehensive identity management
#### Scriptable tools, no-hands deploy
#### Cloud managed
#### Field upgradeable
#### Disconnection-tolerant

---
class: tight

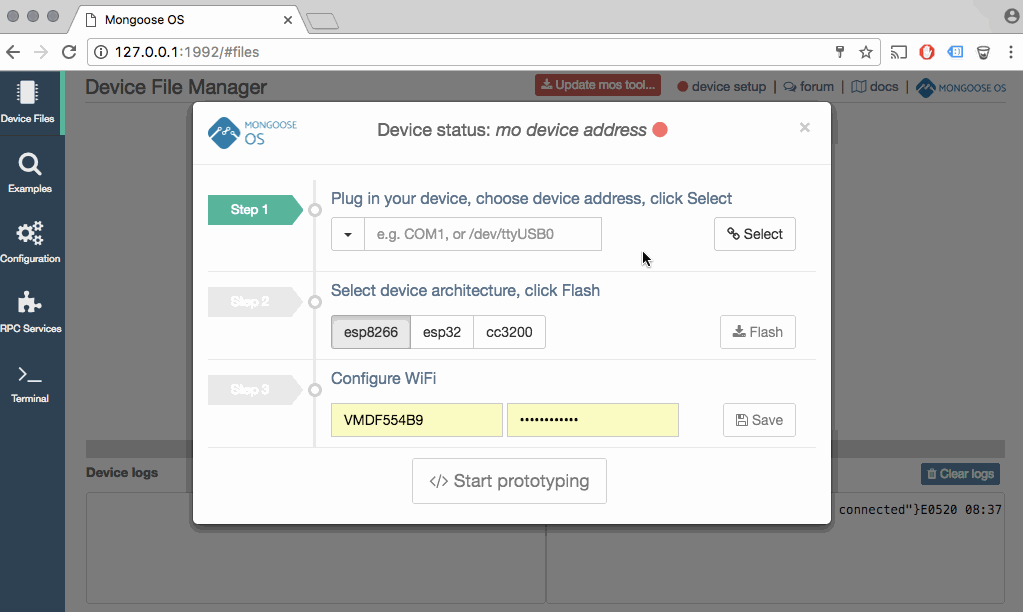

# Enter the Mongoose (OS)
.fig60[
![](mos1.gif)]

#### Supports four different CPUs
#### Toolchain on Linux, MacOS, Windows
#### Web IDE, plus command-line tools
#### Develop over USB or WiFi
#### Integrated with AWS and Google IoT
#### Over-the-air updates via push or pull
#### Extensible API callable via serial, websockets, REST, MQTT
#### Arduino API compatible
#### Code in C, C++ or **.red[JavaScript]**

---
layout: true
class: bulletsh4
.header[.floatleft[.teal[Christopher Biggs] — Two Minute IoT].floatright[.logo[@accelerando_au]]] .footer[.floatleft[BrisJS Jul 2017]]
.crumb[
# Agenda
# Platform
]

---

# MongooseOS platform

#### Based in Dublin (cesanta.com)
#### Ex Googler Sergey Lyubka et.al.

#### Started as embedded web server, expanded to whole OS
#### Dual License, GPL or Commercial

#### Supports CPUs from Espressif (.cn), TI (.us) , ST (.ch)

---
.fig50[
![](esp32.png)]

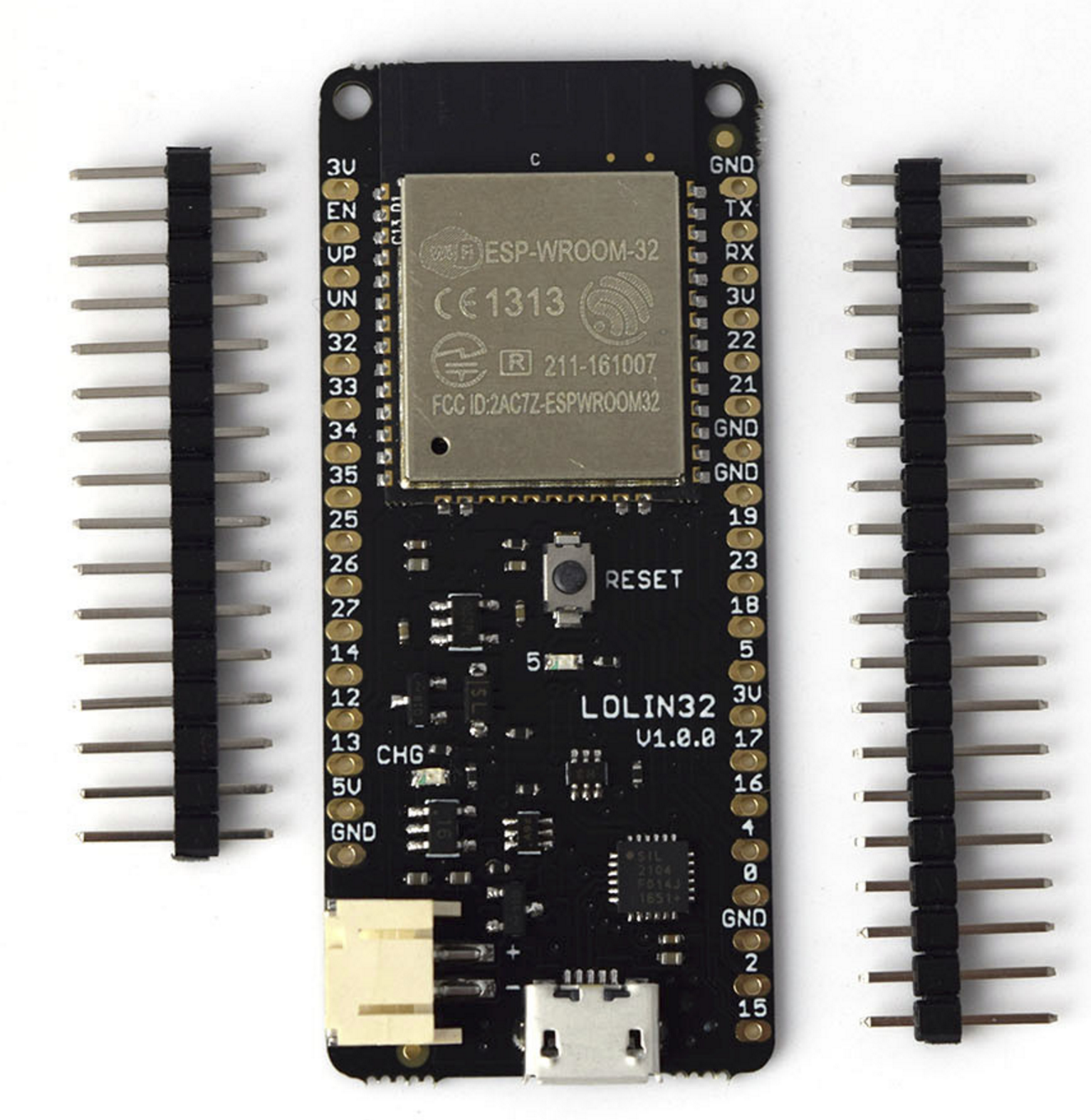

# Espressif ESP8266 and ESP32

#### WiFi microcontrollers originally for wifi backpacks and appliances
#### C-lang SDK from manufacturer
#### Open source runtimes

* Arduino (C++)
* NodeMCU (Lua)
* MicroPython
* Mongoose OS (JS)

---
class: autodim

# Micro Javascript

#### An ES6 subset

--
#### a very small subset!  25k FLASH, 1k RAM.

--
#### No standard library, but
#### Dead easy calls to the MOS C stdlib

```javascript
Timer.set(1000, true, function(arg) {
  let now = ffi('unsigned long mg_time()')();
  let topic = Cfg.get('device.id') + '/event/close';
  let message = JSON.stringify({
    time: now
  });
}, null);
```

---
# Mongoose OS Toolchain

* Compile from Go source on github
* One-line shell paste to install released binary
* Interactive setup wizard
* Device talks RPC on serial port (unlike most others)
* Command line mos tool
```
mos ls
mos put init.js
mos get init.js
mos flash aws-esp8266
mos wifi MyNetwork MySekritPassword
mos aws-iot-setup
```
* Web IDE
```
.mos/bin/mos ui
```

---

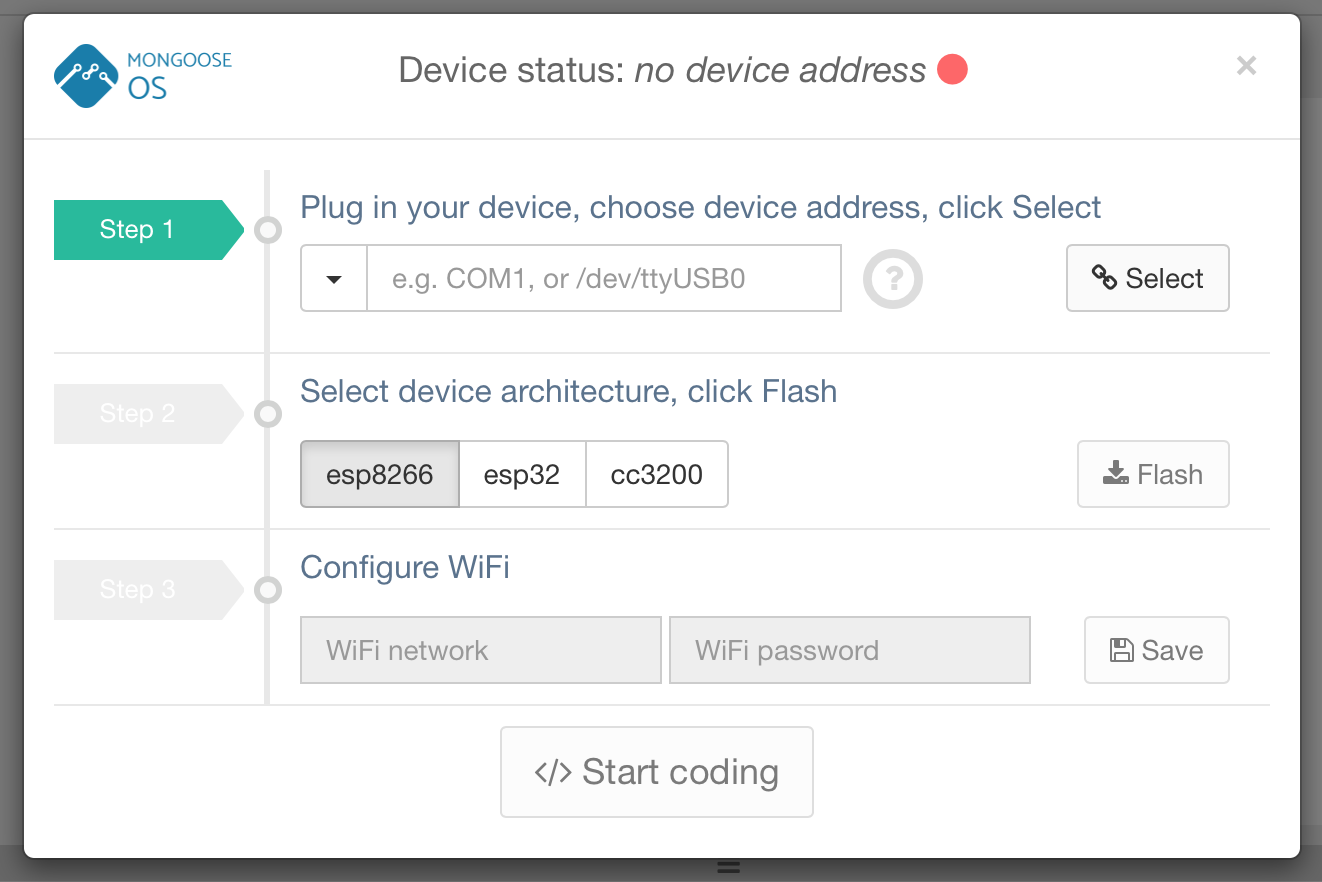

# Mongoose OS Toolchain - IDE

.fig60[
![](mos_wizard.png)]
.fig7[
![](toolbar.png)]

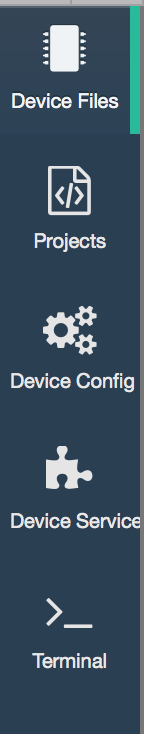

#### File browser and editor
#### Project and library manager
#### Configuration editor
#### RPC Inspector
#### Terminal
#### Log viewer

---
class: tight

# Connecting your device

#### Direct USB
* MacOS driver support (or rather vendor device IDs) can be iffy
* No USB A?  Get a $15 ARM linux box to use as a dongle.
* Golang IDE listens on http://localhost:1992/
* Docker containers: http://github.com/unixbigot/mongoose-os/
* The IDE server uses the RPC api to interact with the device, so...

#### Internet
* ...you can develop over the network!
* `mos ui ws://some.ip.address:1992/`
* Maybe set a password, eh?

---
class: vtight

.fig60[
![](aws_iot_dashboard.png)]

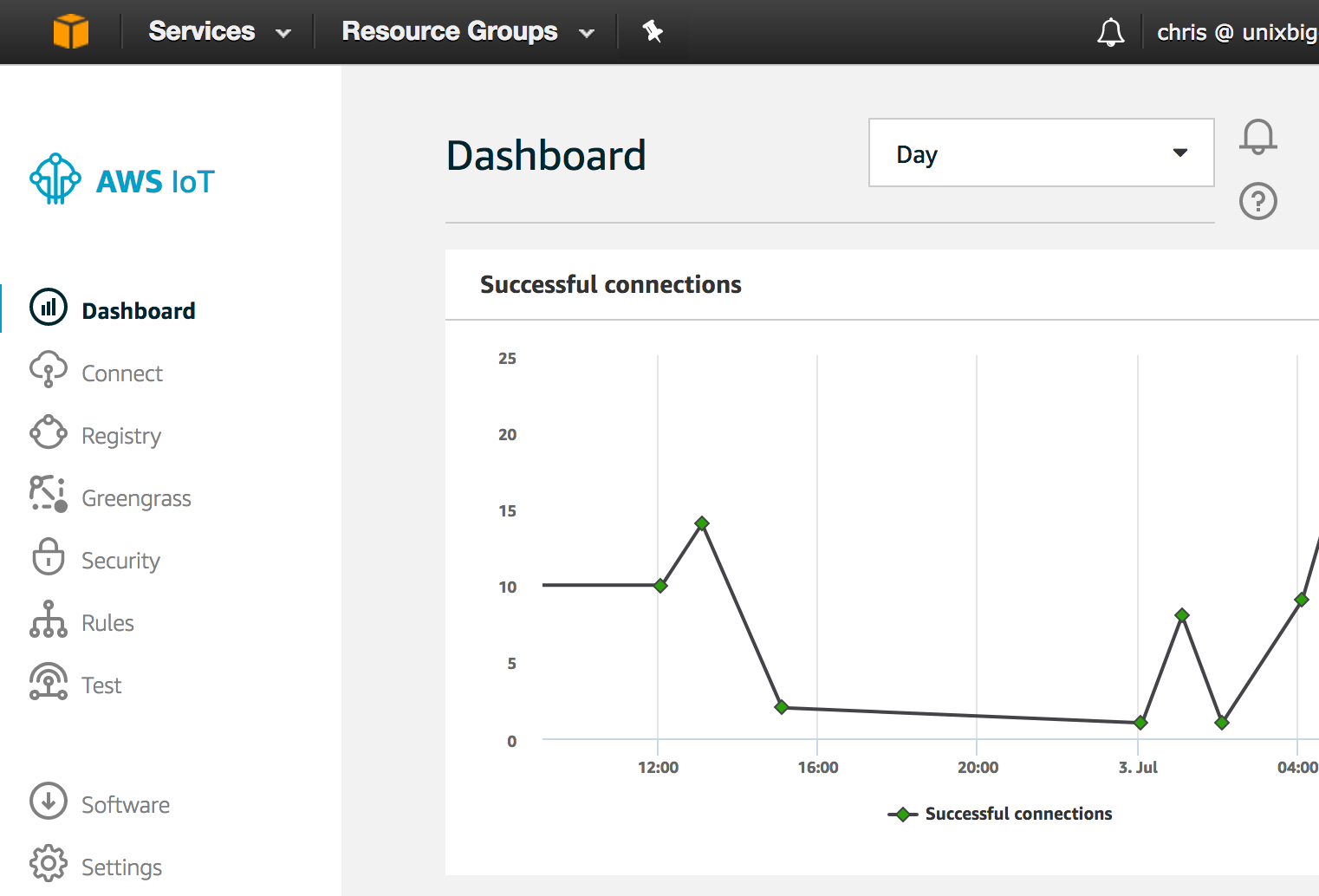

## Easy enrol in AWS and Google cloud
#### Get an AWS account

#### Install the AWS cli
```
pip install --upgrade awscli
```

#### Put your api key in `~/.aws/credentials`, then

```
mos wifi WIFI_SSID WIFI_PASSWORD
mos config-set mqtt.enable=true
mos aws-iot-setup --aws-iot-policy=mos-default
mos console
```

The `aws-iot-setup` invocation enrols the device, and then
requests and installs SSL client certificates on the device.

---

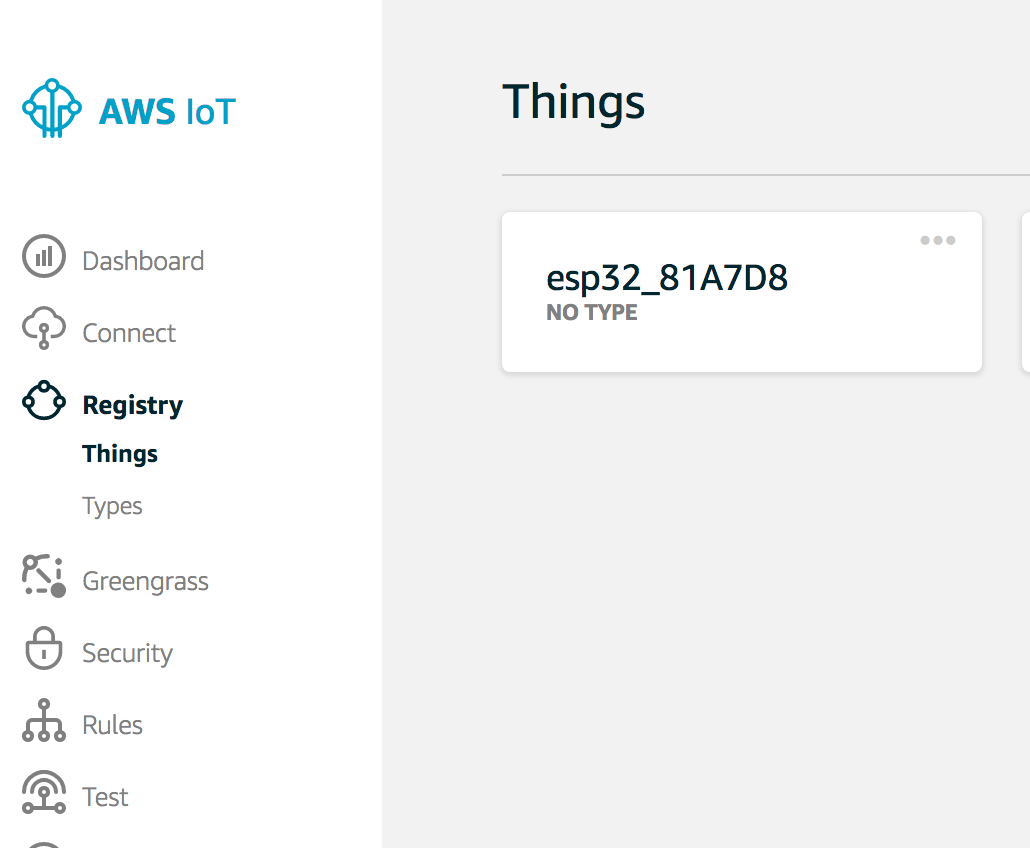

## What can you do with AWS IoT console

.fig60[
![](aws_iot_registry.png)]

#### See your device registry
#### Manage certificates
#### Listen to and send MQTT messages
#### View and modify Device shadow
#### Define Rules

---
class: vtight

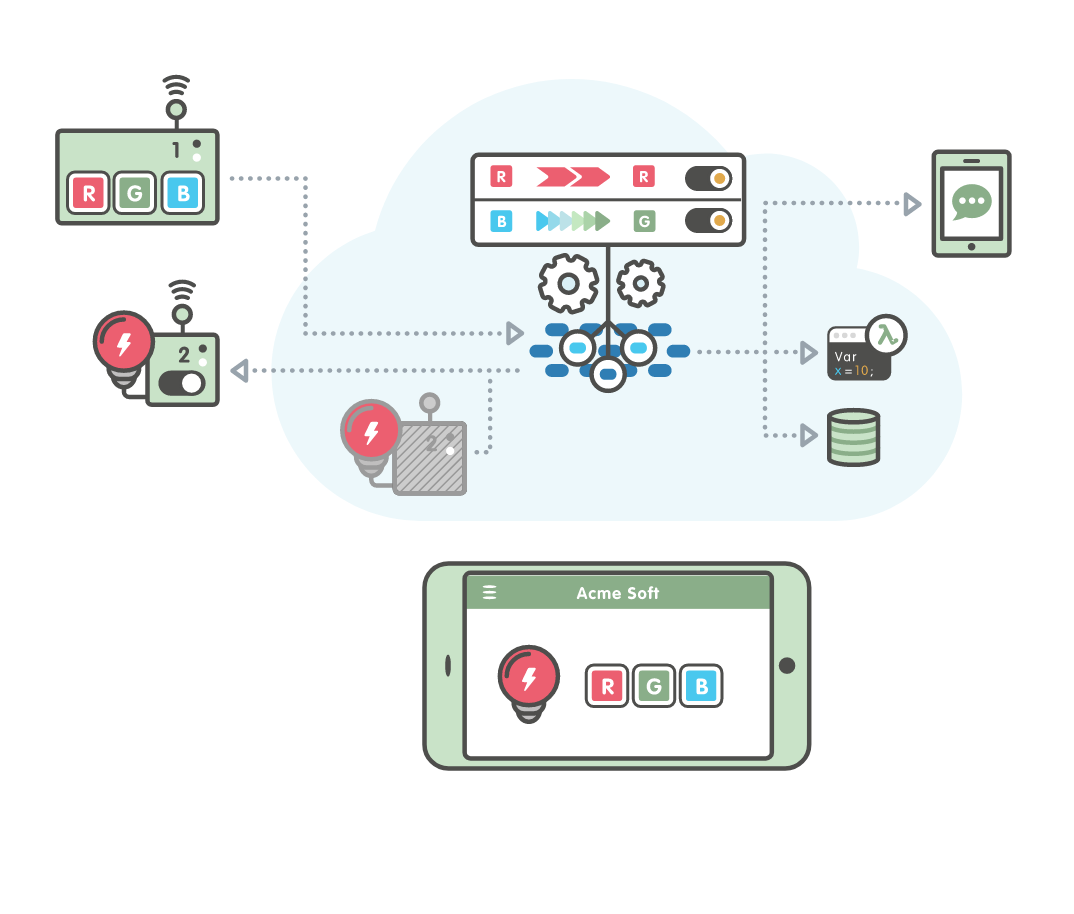

## Wait, rules, messages, shadows?

.fig50[
![](aws_iot_arch.png)]

#### MQTT is a publish-subscribe message system
* Messages have a topic (think filename) and body (text or JSON)

#### AWS is mostly standard MQTT, except
* Limited QoS options.
* No "retained publish", instead...
* A "device shadow" document allows updates to happen offline.
* Shadow updates propagate via MQTT on special topics eg `$aws/things/SOME_ID/shadow/update`.
* Who knows what happened when a device was offline?
--

* .red[The Shadow Knows!!!]

---
class: vtight

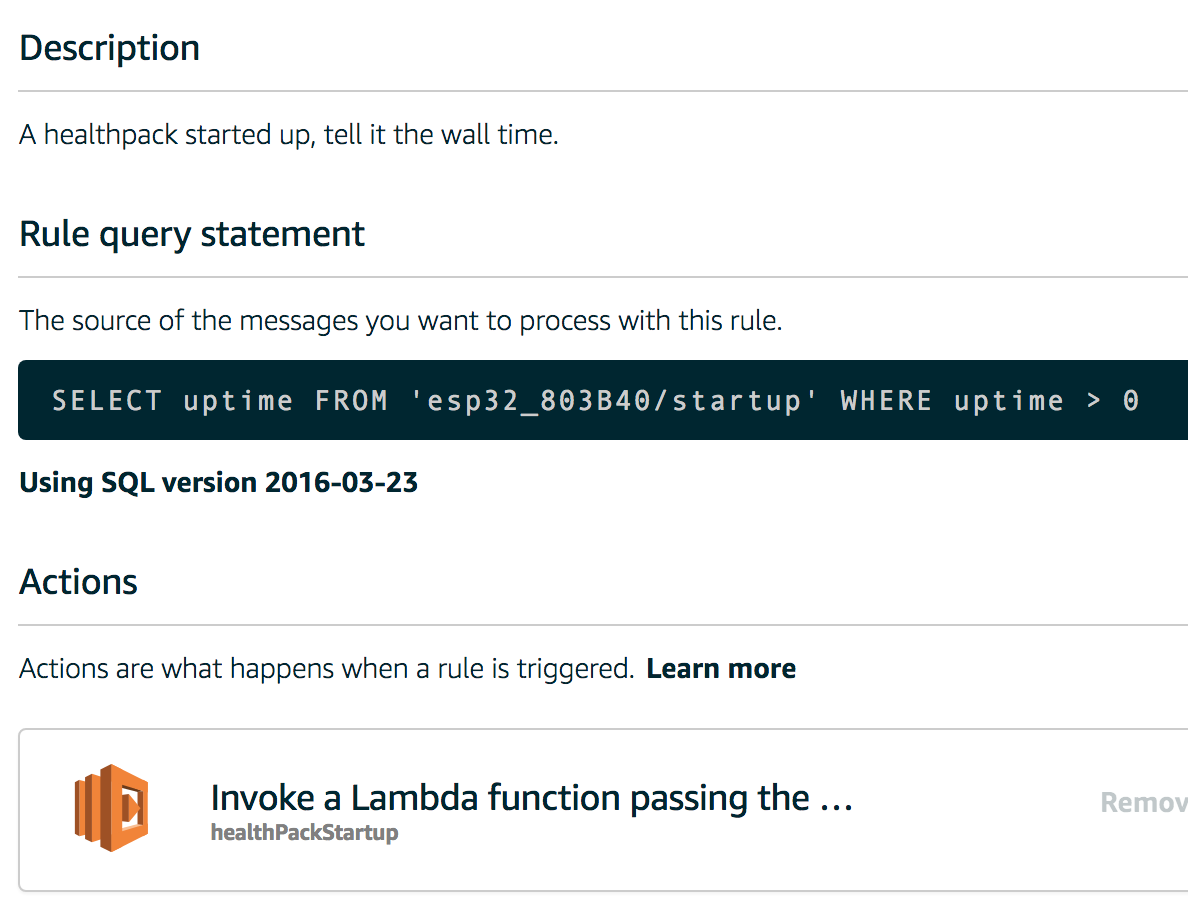

## Interacting with your Thing
![](iot_rule.png)

#### Plain old MQTT is fine if you don't care about LoS
#### Send all interactions via the shadow document to cope with disconnects
#### But if you want to react to events, go back to MQTT
--

## IoT rules
#### When a message with TOPIC A (and PAYLOAD B) arrives, do ACTION C
--

#### Actions can be
* Database inserts
* Push notifications
* Re-queue to MQTT, Kinesis, SQS, Salesforce, Cloudwatch
* Store to S3, and...
--

* .red[**Invoke a Lambda Function**]

# Interlude - packaging and updates

#### You can get a long way with `mos ls`, `mos get` and `mos put`,
#### The IDE lets you browse and edit files, including the MJS APIs
#### Firmwares are zipfiles, `mos flash` fetches or builds a zip
#### You can use the RPC Api to instruct a device to fetch a zip
#### Devices can poll on their own

---

# Interlude - Library and Project management

#### New in Mongoose THIS WEEK
#### Browse and fetch Libraries for extra stuff (eg LCD screens)
#### A number of sample apps - YAML library spec, C and/or JS code
#### Create your own libs and apps by cloning the empty app
#### The AWS demo app is a good place to start
#### Good collection of tutorials and videos at mongoose-os.com

---
.fig50[
![](demo_demon.png)]

# Demo Demons, I Invoke Thee!

### Let's make a medication reminder

#### Have I opened the medicine box today?
#### Should I have done so by now?
#### Did I leave without doing it?

**Hilarious Live Demo Goes Here**

---
# Some tips

## Put a delay in init.js in case of crash loops
## Do something visible at the end of init.js (eg. flash onboard LED)
## Create and test your Lambda functions first, then set up IoT rules

---
.crumb[
# Agenda
# Platform
# Development
# Deployment
# Demo Demons
# Coda
]

## Summary
#### Choose a full service embedded OS that skips the drudgery
* Provisionoing
* Management
* Message transport
#### Ensure you have a "DevOps Ready" toolchain
#### Field upgrades are a **must have**
#### Avoid low level languages if you can.

---
class: small

.crumb[
# Landscape
# Challenges
# Solutions
# Coda
## Summary
## Resources
]

## Resources, Questions

#### Mongoose OS - [github.com/cesanta/mongoose-os](https://github.com/cesanta/mongoose-os)

#### Related talks - [http://christopher.biggs.id.au/#talks](http://christopher.biggs.id.au/#talks)

#### Me - Christopher Biggs
  - Twitter: .blue[@unixbigot]
  - Email: .blue[christopher@biggs.id.au]
  - Slides, and getting my advice: http://christopher.biggs.id.au/
  - Accelerando Consulting - IoT, DevOps, Big Data - https://accelerando.com.au/

???

Thanks for your time today, I'm happy to take questions in the few
moments remaining and I'm here all week if you want to have a longer
chat.   Over to you.
