# IoT for Slackers

How to bring IoT into your workplace simply and safely,<br>
using .blue[NodeMCU] and .blue[Slack].

.bottom.right[
Christopher Biggs
<br>.blue[@unixbigot]
]

---
.left-column[
# Agenda
]
.right-column[
### **Introduction**: About .blue[Me] and my take on IoT
### **Hardware**: The .blue[ESP8266] Micro-controller
### **Software**: The .blue[NodeMCU] Lua environment
### **People**: The .blue[Slack] messaging platform
### **Things**: Some .blue[Ideas] to start you off
]

---
template: inverse
# About Me
---
.left-column[
## Intro
### About Me]
.right-column[
* If I was a kid today, I'd be arrested.

.img-600w[![Pyro](pyro.jpg)]
.right[disclaimer: <a href="https://youtu.be/D5_ogU4Jzt4">not me</a>]
]

---
.left-column[
## Intro
### About Me]
.right-column.small[
* Worked on the first generation of web-configurable routers.
* Most recently directed a team of 60+ app and web coders.

.img-320w[![Herding cats](herding_cats_comic.gif)]
.right.flyspeck[Image: <a href="http://www.glenknight.com/?m=201112">Glen Knight</a>]
]

---
.left-column[
## Intro
### About Me]
.right-column.small[
* Thinking about ways to inspire creativity in teams.
* This presentation originated as my plan for team hackathon.

.img-600w[![Creativity](creativity.jpg)]
.right.flyspeck[Image: <a href="http://freestock.ca/signs_symbols_g43-old_world_inspirational_sign__hdr_p1704.html">Nicolas Raymond</a>]
]

---
.left-column[
## Intro
### About Me
### IoT Philosophy]
.right-column.small[
## My IoT Philosophy
* Low power, low complexity

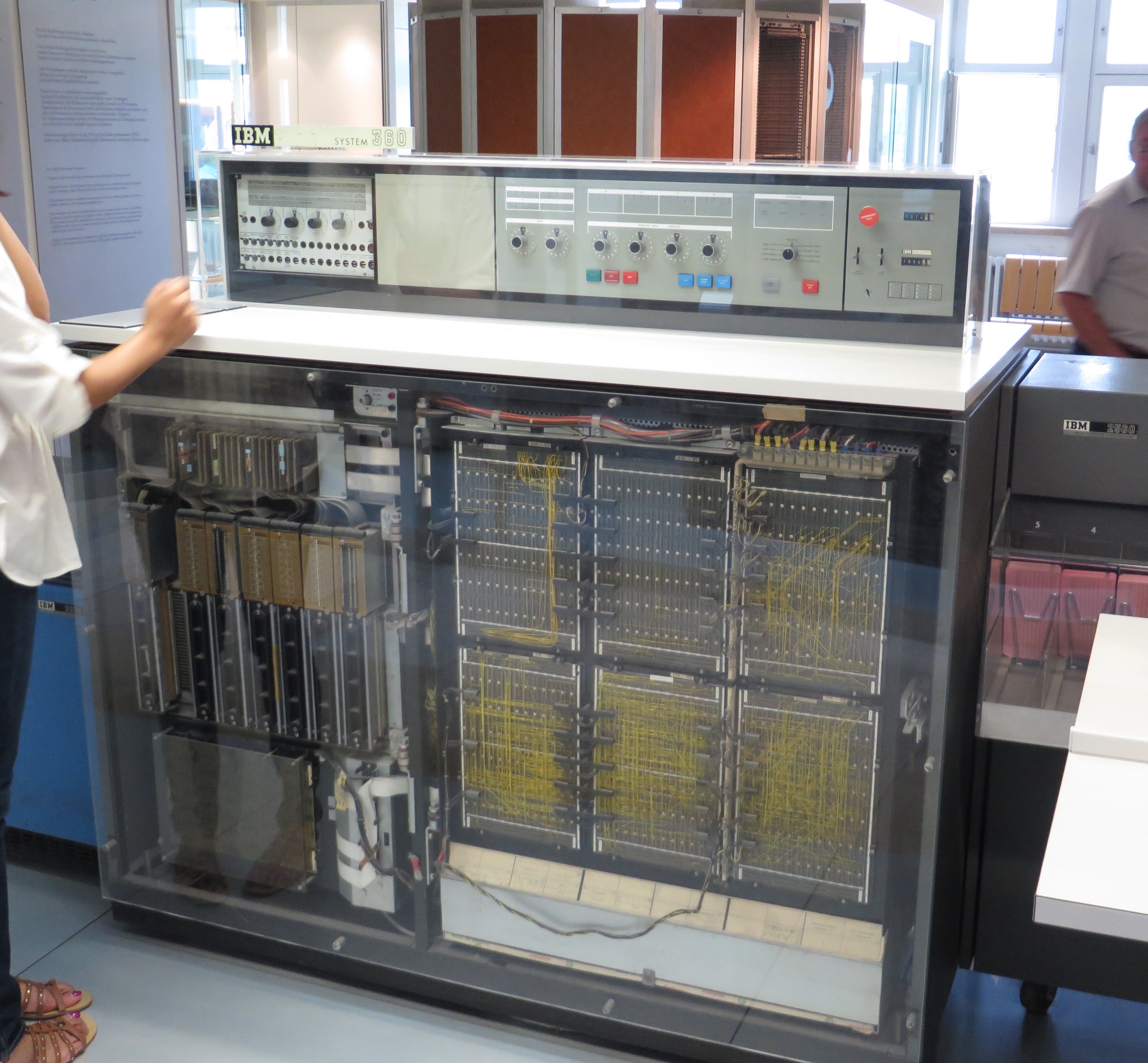

.img-400w[![IBM 360](ibm.jpg)]
]
---
.left-column[
## Intro
### About Me
### IoT Philosophy]
.right-column[
* .grey[Low power, low complexity]
* Do one job efficiently and simply

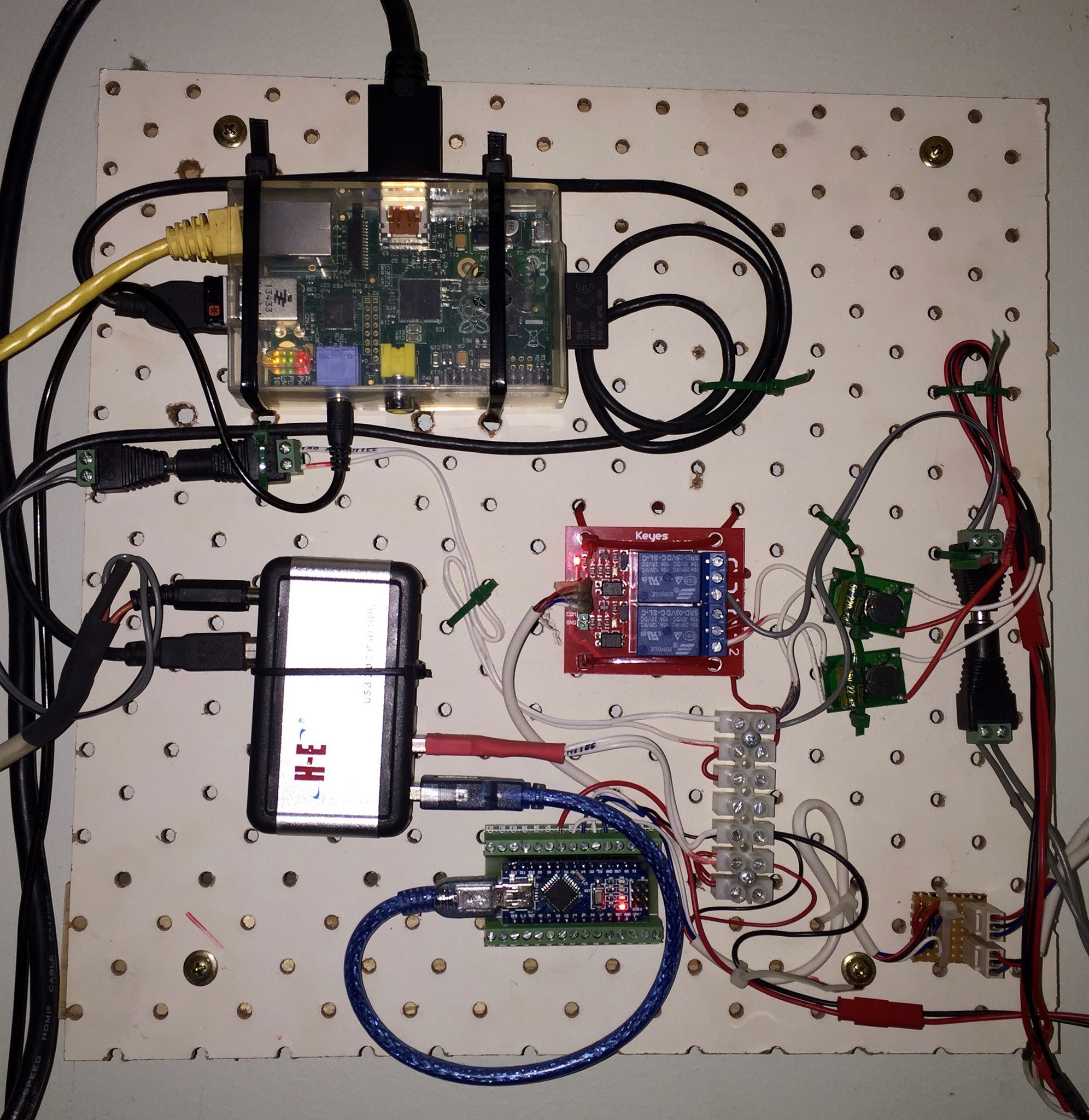

.img-400w[![Wall mounted Unix server](unix_wall.jpg)]
]
---
.left-column[
## Intro
### About Me
### IoT Philosophy]
.right-column[
* .grey[Low power, low complexity]
* .grey[Do one job efficiently and simply]
* High level languages for rapid prototyping and development

```Lua
 -- a simple HTTP server
srv = net.createServer(net.TCP)
srv:listen(80, function(conn)
    conn:on("receive", function(sck, payload)
        print(payload)
        sck:send("HTTP/1.0 200 OK\r\nContent-Type: text/html\r\n\r\n<h1> Hello, NodeMCU.</h1>")
    end)
    conn:on("sent", function(sck) sck:close() end)
end)
```
]

---
template: inverse
# Hardware
---
.left-column[
## Hardware
### Prehistory
]
.right-column.small[
## The IoT hardware space
* Before the mid '90s, things were primitive and expensive
* Vendors considered compilers and development kits a profit source

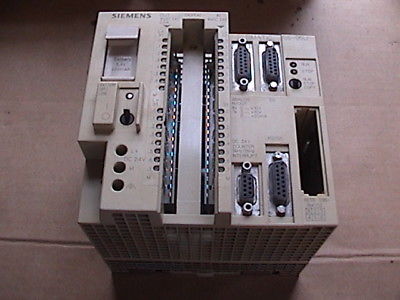

.img-400w[![1980s PLC](1980s_plc.jpg)]
]

---
.left-column[
## Hardware
### Prehistory
]
.right-column[
* Specs and data were essentially secret
* Hobbyists were locked out

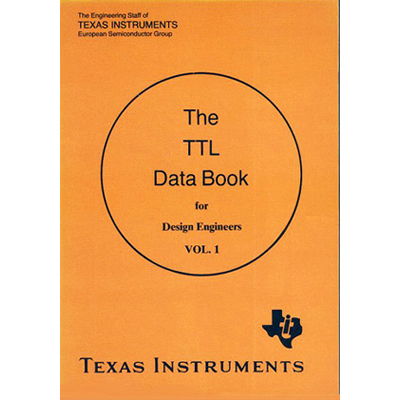

.img-320w[![TTL Databook](ttl_databook.jpg)]
]

---
.left-column[
## Hardware
### Prehistory
]
.right-column[
* 1990s: MIT Media lab and Lego
* It still cost hundreds of dollars to get started

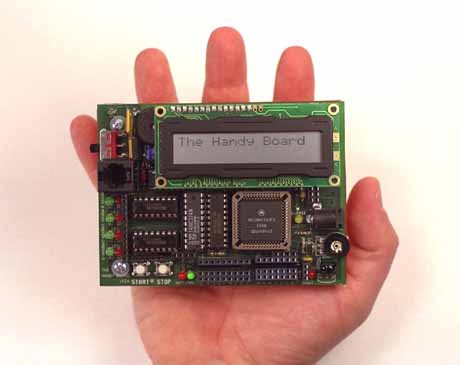

.img-250w[![MIT Handyboard](handyboard.jpg)]
.img-250w[![Lego Mindstorms](rcx.jpg)]
]
---
.left-column[
## Hardware
### Prehistory
### Arduino
]
.right-column[
* 2005: Arduino arrived for $50
 - Tools were free, portable, and open source

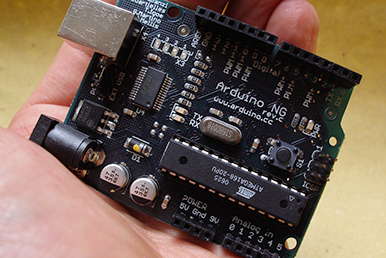

.img-500w[![Arduino NG](arduino_ng.jpg)]
]
---
.left-column[
## Hardware
### Prehistory
### Arduino
### Raspberry Pi
]
.right-column.small[
* 2012: Raspberry Pi, $35.
  - Pros: Full Linux system.
  - Cons: Full Linux system.
* WiFi was an extra cost add-on for both Arduino and Pi.

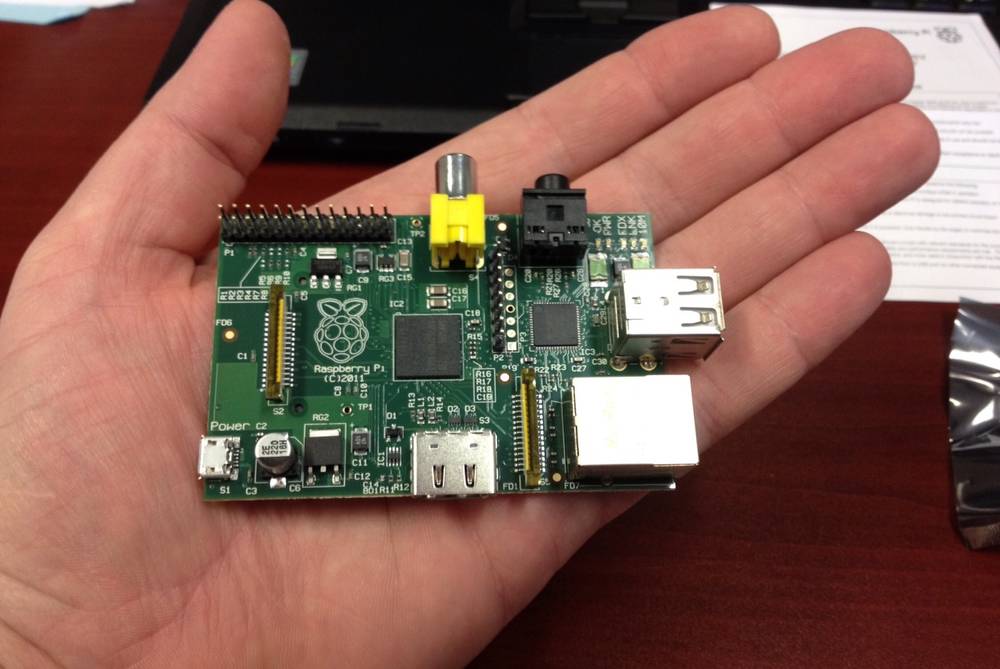

.img-400w[![Raspberry Pi](raspberry_pi.jpg)]

]
---
.left-column[
## Hardware
### Prehistory
### Arduino
### Raspberry Pi
### ESP
]
.right-column.small[
* 2014: Espressif ESP8266
  -  initially sold as a cheap WiFi Modem peripheral
* Rapid diversification of hardware modules

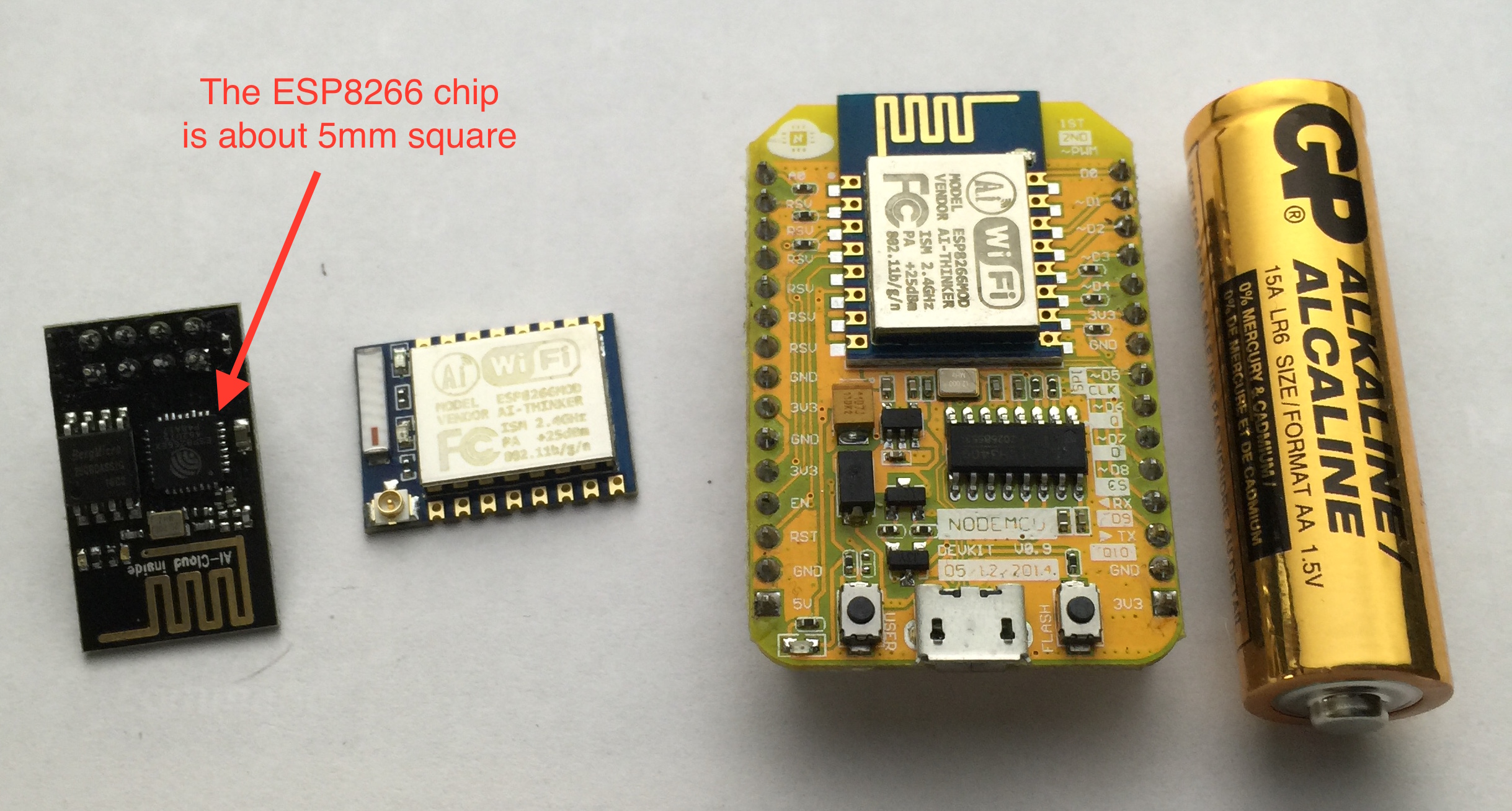

.img-500w[![ESP 8266](esp8266.jpg)]

]
---
.left-column[
## Hardware
### Prehistory
### Arduino
### Raspberry Pi
### ESP
]
.right-column.small[
### The ESP8266 System-on-a-Chip
.smaller[
* 80MHz 32-bit CPU
* 64kB of on-board RAM
* External flash ROM up to 16MB
* On-board WiFi
* 16 General-purpose Input/Output pins
* SPI, I2C and Asynchronous serial communications
* Proprietary real-time operating system
* Packaged in a number of different hardware modules with between 2 and 22 IO pins
]
]
---
.left-column[
## Hardware
### Prehistory
### Arduino
### Raspberry Pi
### ESP
### Cheap as in Chips
]
.right-column.small[
* All this for as little as two dollars
* ...in unit quantity

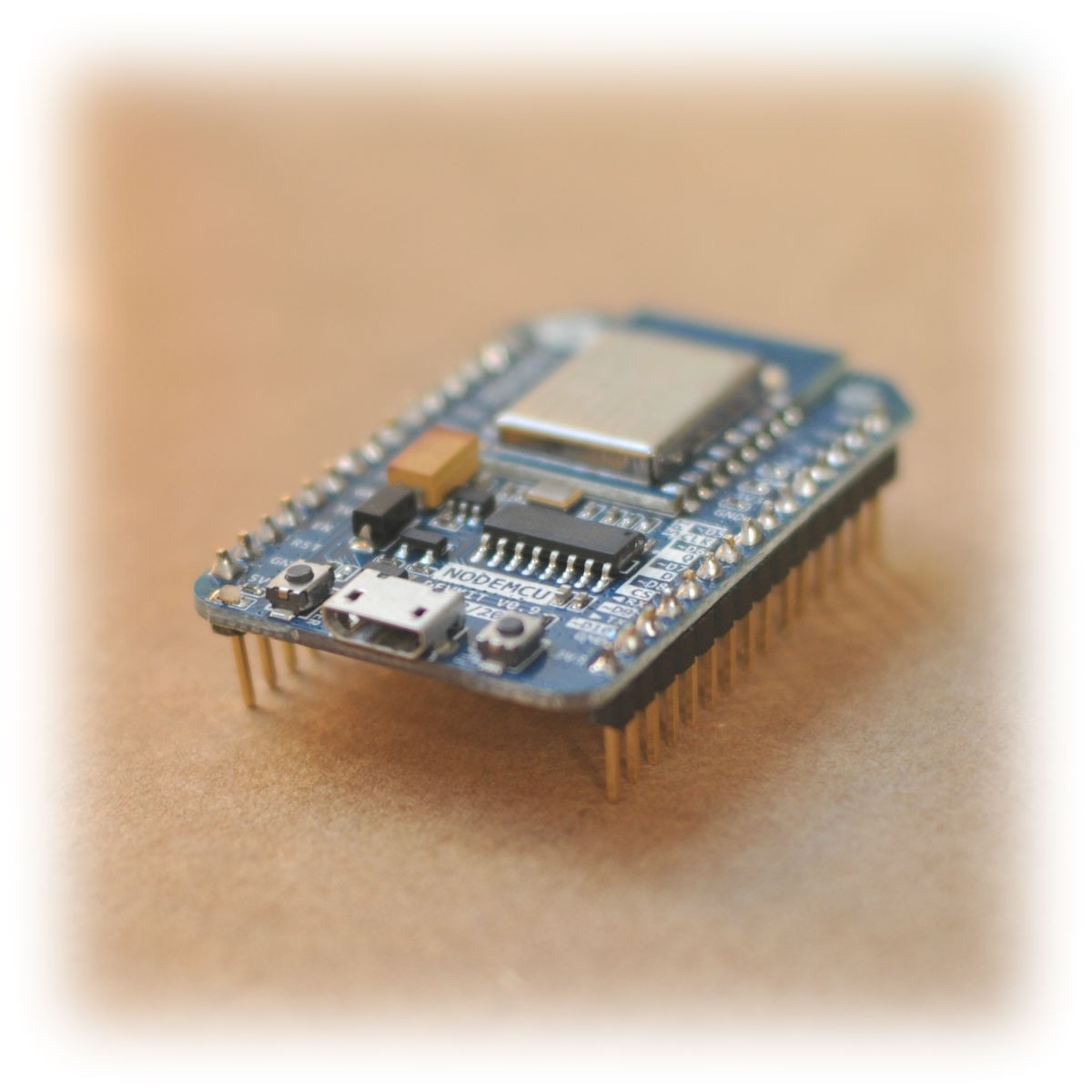

.img-500w[![NodeMCU Dev Kit](nodemcu_devkit.jpg)]
]

---
template: inverse
# Software

---
.left-column[
## Software
### Release
]
.right-column[
### ESP becomes a platform
* 2013: (Dec) Espressif ESP8266 WiFi System-on-a-Chip (SOC), with "AT"
firmware

```
AT+CWJAP="ExampleCorp WiFi", "swordfish"
OK

AT+CIFSR
192.168.1.100
OK

AT+CIPSTART="TCP", "www.example.com", 80
OK

AT+CIPSEND=16
GET / HTTP/1.0
OK

+IPD, 16: HTTP/1.0 200 Ok
```
]
---
.left-column[
## Software
### Release
]
.right-column[
### ESP becomes a platform
* 2013: .grey[(Dec) Espressif ESP8266 WiFi System-on-a-Chip (SOC), with "AT" firmware]
* 2014: (Aug) Espressif releases SDK
* 2014: (Nov) Open-source SDK using **gcc** and friends
]
---
.left-column[
## Software
### Release
### Explosion
]
.right-column[
### Explosion of Diversity
* 2014: (Oct) NodeMCU project creates a Lua programming environment
* 2014: (Nov) Arduino runtime ported to ESP8266
* 2014: (Nov) MicroPython ported to ESP8266
]
---
.left-column[
## Software
### Release
### Explosion
]
.right-column.small[
* 2014: (Nov) Open source NodeMCU Dev Kit design is published.
  * Boards cost under $5

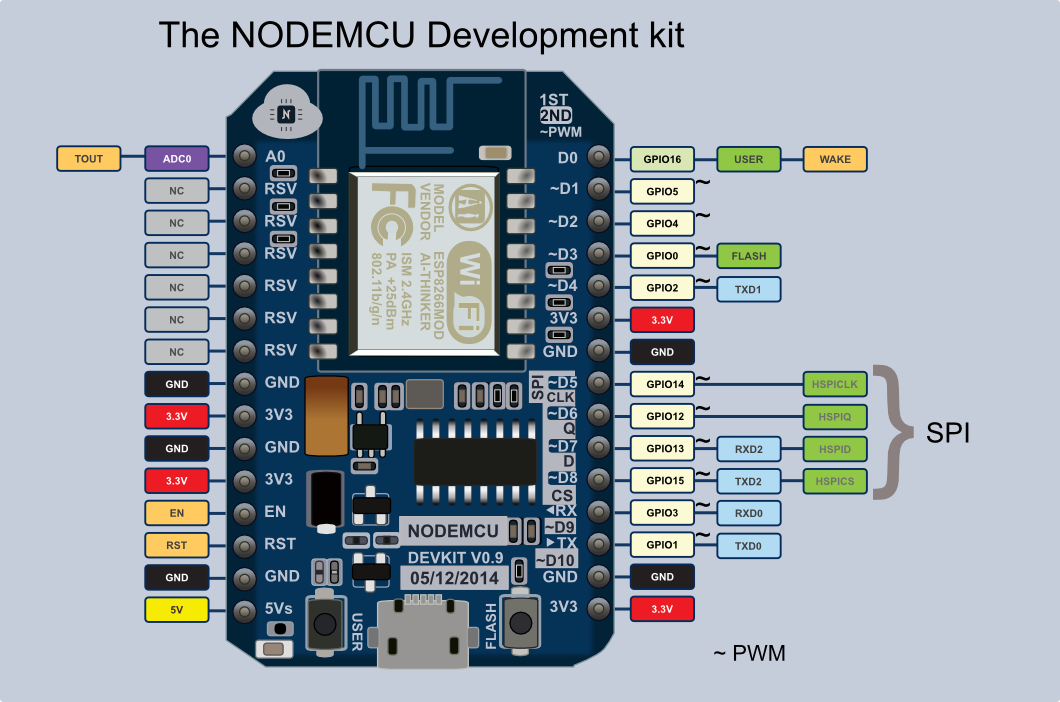

.img-500w[![NodeMCU Pins](nodemcu_pins.png)]
]
---
.left-column[
## Software
### Release
### Explosion
]
.right-column.small[

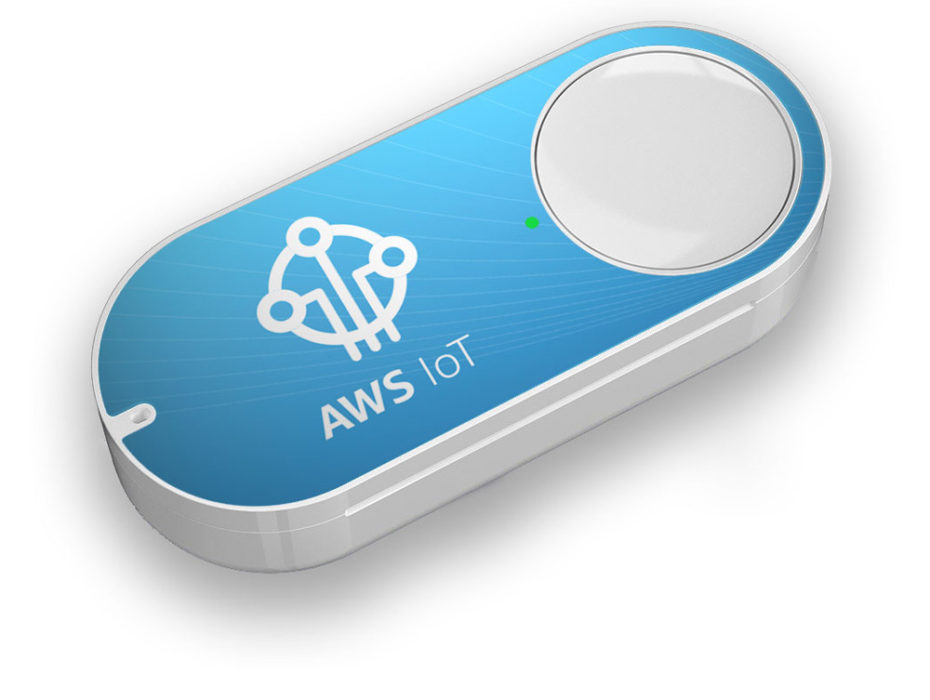

* 2016: (May) AWS IoT button on sale in USA (only) for $20

.img-320w[![AWS IoT button](aws_iot.jpg)]
.img-320w[![AWS IoT in use](aws_tide.jpg)]
]
---
.left-column[
## Software
### Release
### Explosion
### NodeMCU
]
.right-column.small[
### The NodeMCU Lua Environment
* Uses the lightweight "Lua" scripting language
* Event-loop model inspired by NodeJS (but not actually Javascript)

.img-640w[![NodeMCU rationale](nodemcu_why.png)]
]
---
.left-column[
## Software
### Release
### Explosion
### NodeMCU
]
.right-column.small[

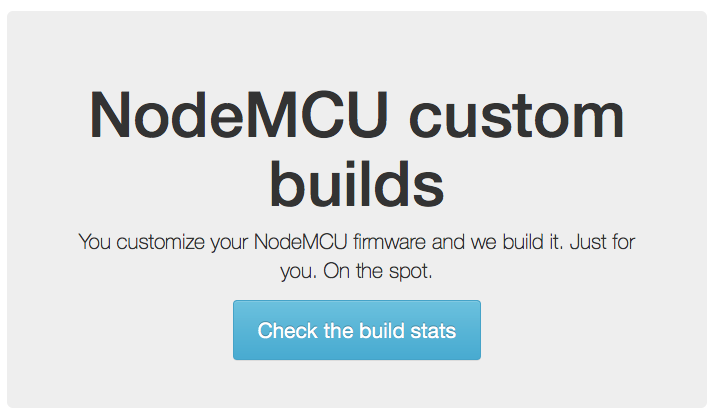

* Construct a firmware (OS image) consisting of the RTOS core plus Lua
interpreter

.img-500w[![NodeMCU build](nodemcu_build.png)]

]
---
.left-column[
## Software
### Release
### Explosion
### NodeMCU
]
.right-column.small[
* Lua functionality broken into modules, to preserve on-chip resources

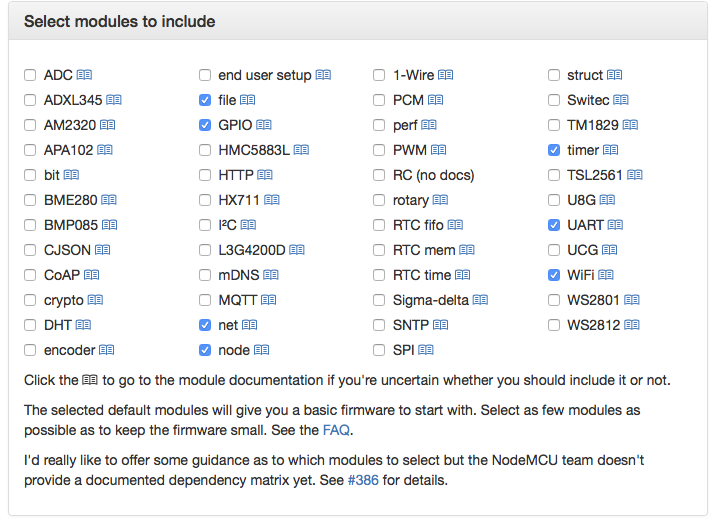

.img-500w[![NodeMCU modules](nodemcu_modules.png)]

* Dev tools from github, or docker, or cloud build service
]
---
.left-column[
## Software
### Release
### Explosion
### NodeMCU
]
.right-column.small[

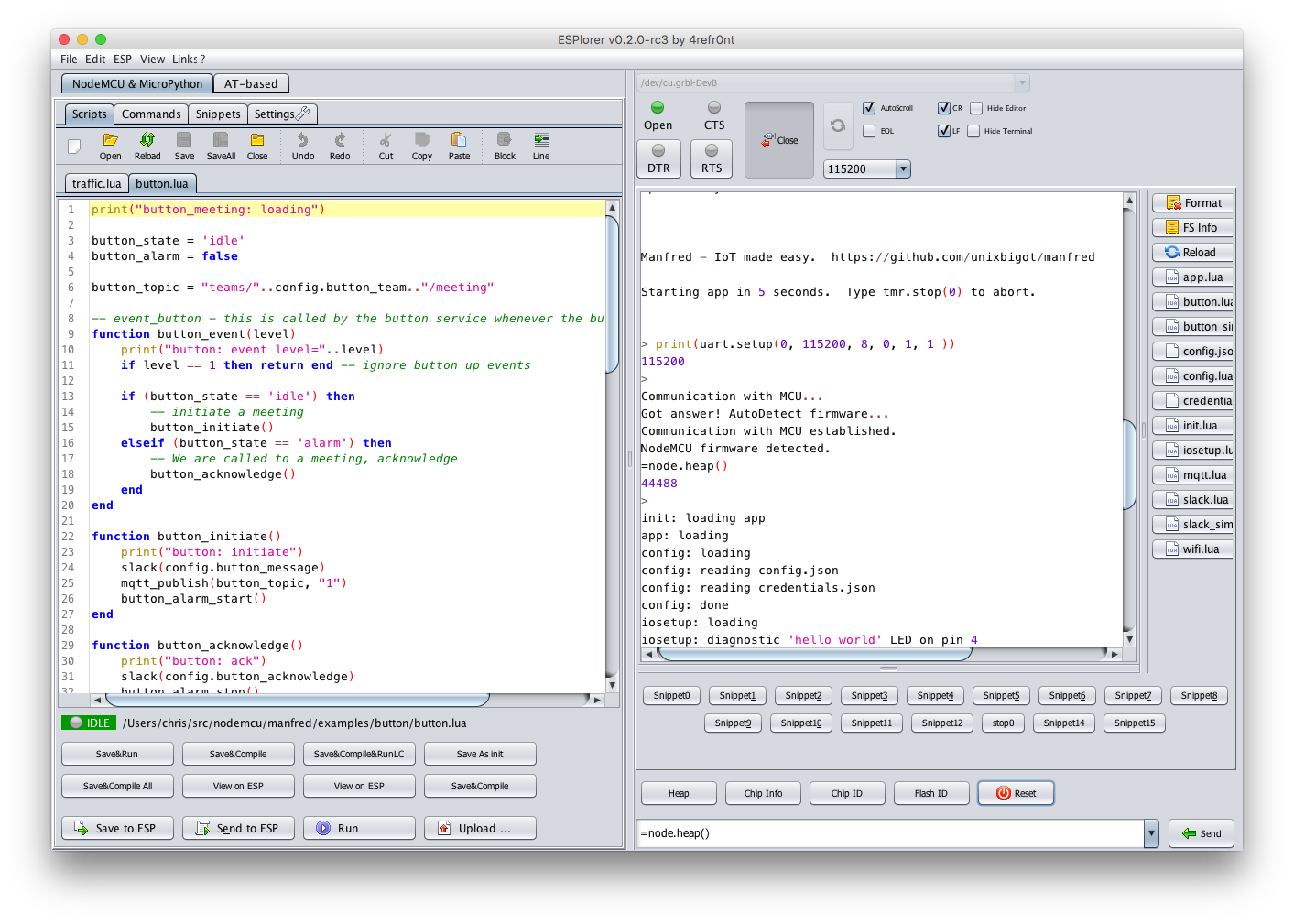

* IDE .blue[esp8266.ru/esplorer]
* CLI .blue[github.com/kmpm/nodemcu-uploader]

.img-640w[![ESPlorer](esplorer.png)]

]
---
.left-column[
## Software
### Release
### Explosion
### NodeMCU
]
.right-column.small[

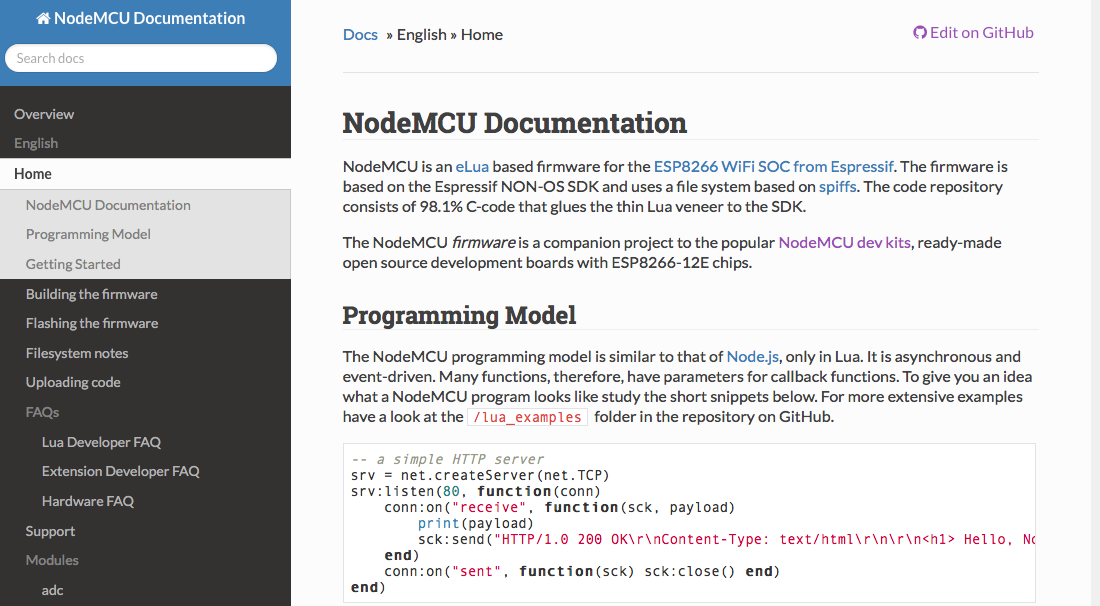

* Comprehensive doco .blue[nodemcu.readthedocs.io]

.img-640w[![NodeMCU documentation](nodemcu_doco.png)]

]
---
template: inverse
# People
---
.left-column[
## People
### Slack
]
.right-column[

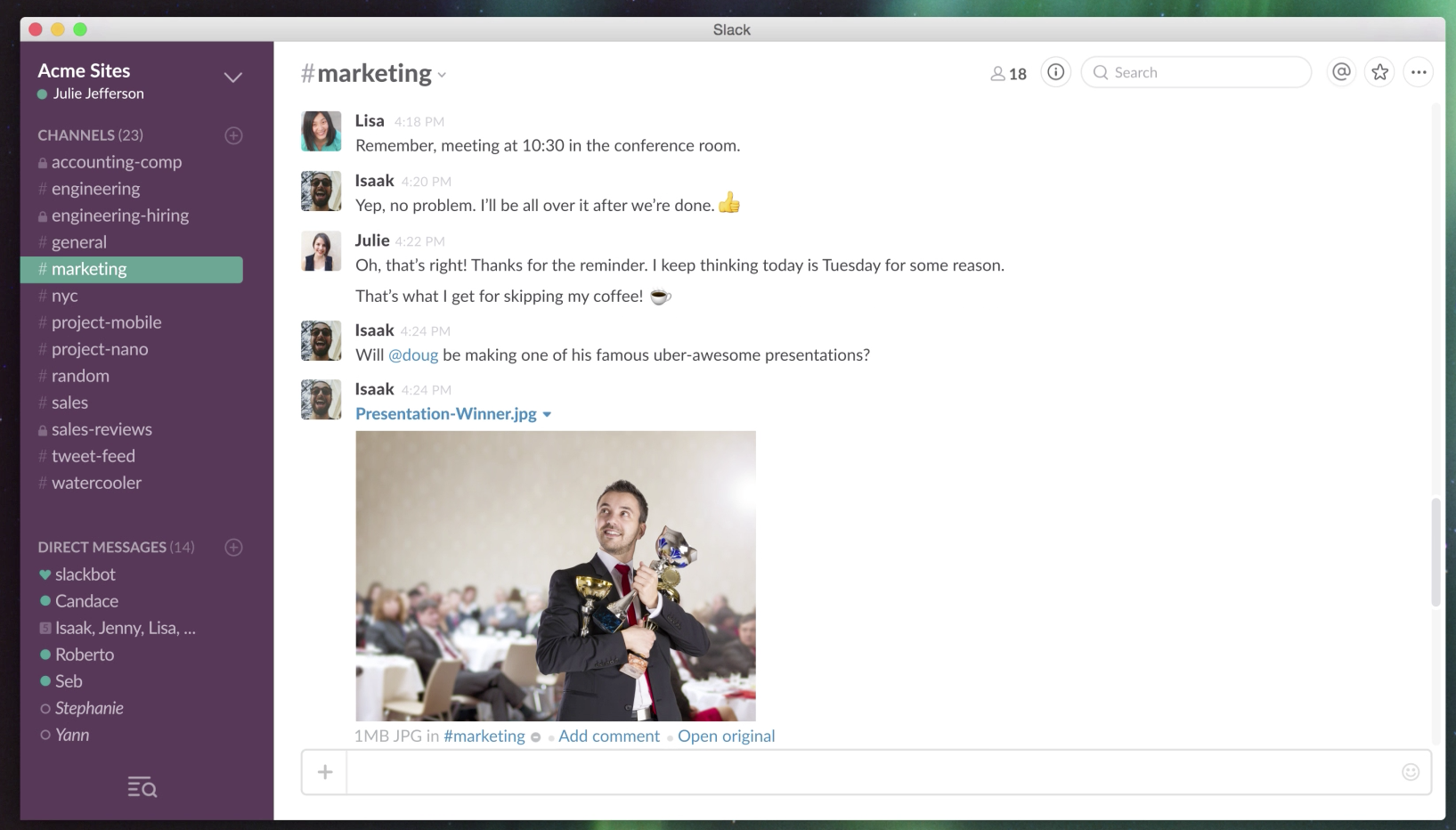

* Slack is a cloud hosted team collaboration platform (chatserver)
* Mobile, Desktop, Browser
* Easy to use APIs

.img-500w[![Slack homepage](slack_homepage.png)]
]

---
.left-column[
## People
### Slack
### Sending
]
.right-column[
### Device to Slack - .blue[Incoming Webhooks]s

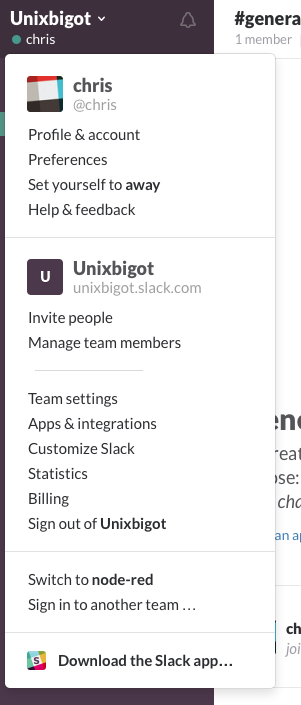

.img-400h[![Slack admin](slack_admin.png)]

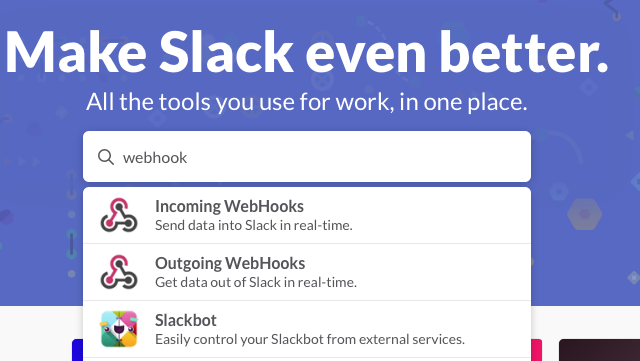

.img-320w[![Slack webhooks](slack_webhooks.png)]
]

---
.left-column[
## People
### Slack
### Sending
]
.right-column.small[
* .grey[To send to slack, create an **Incoming Webhook**]
* Testing your webhook

```bash
curl -X POST --data-urlencode
'payload={"channel": "#demo",
  "username": "interruptingcow",
  "text": "MOOOO!.",
  "icon_emoji": ":cow:"}'
https://hooks.slack.com/services/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
```
.img-500w[![Webhook example](slack_inbound_test.png)]

]

---
.left-column[
## People
### Slack
### Sending
]
.right-column.small[
* .grey[To send to slack, create an **Incoming Webhook**]
* .grey[Testing your webhook]
* Doing HTTP from .blue[NodeMCU]

```Lua
function slack_send(msg)
	local post_headers= 'Content-Type: application/json\r\n'

local post_body = '{
		"channel": "#demo",
		"username": "interruptingcow",
		"icon_emoji": ":cow:",
		"text": "'..msg..'", "mrkdwn":true}'
	http.post(slack_url, post_headers, post_body,
		function(code, data)
			if (code < 0) then
				print("HTTP request failed: code "..code)
			else
				print("Slack response: ", code, data)
			end
		end
	)
end
```

]
---
.left-column[
## People
### Slack
### Sending
]
.right-column.small[
* .grey[Doing HTTP from NodeMCU]
* ...the easy way (.blue[github.com/unixbigot/manfred])

```json
// config.json
{   "application_name": "button",
    "button_message": "Everybody PANIC!!"
}
```

```json
// credentials.json
{   "wifi_passwords" :  { "ExampleCorp Wifi": "swordfish" },
    "slack_webhook_url" :"https://hooks.slack.com/services/T1MV1421H/B2B01B5GV/thereisafroginmybidet"
}
```

```lua
-- button.lua

function button_start()
	register_button(config.pin_button, "down", button_event)
end

function button_event(level)
	slack(config.button_message);
end

```
]
---
.left-column[
## People
### Slack
### Sending
### Receiving
]
.right-column.small[
### Slack to Device - .blue[Outgoing webhooks]
* Listen for keywords on a channel
* .blue[POST] details to a URL

.img-500w[![Outgoing setup](slack_outgoing_setup.png)]
]
---
.left-column[
## People
### Slack
### Sending
### Receiving
]
.right-column[
* Receiving .blue[POST]s in the cloud

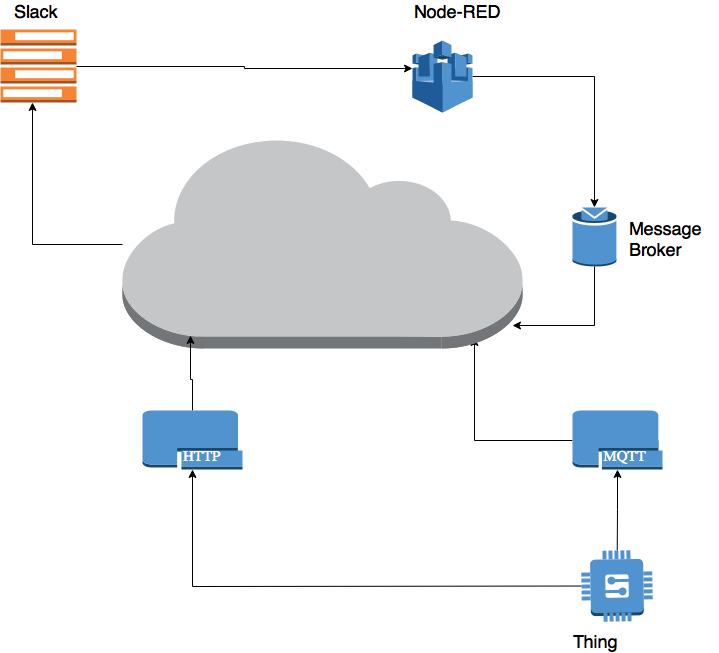

.img-500w[![IoT Broker](iot_broker.png)]
]
---
.left-column[
## People
### Slack
### Sending
### Receiving
]
.right-column.small[
* Siting your .blue[middleware]:
  * Any old web server you already have
  * Red Hat OpenShift (prototyped, three free servers per account)
  * Amazon Lambda (prototyped, X free calls per month)
  * Amazon EC2 (this is what I'll demo)
  * localtunnel.me (a public endpoint for your internal servers)
  * Your favourite cloud service
  * Run your own MQTT broker, or try .blue[test.mosquitto.org]
]
---
.left-column[
## People
### Slack
### Sending
### Receiving
]
.right-column.small[
* Using .blue[nodered.org] as your middleware
  - Visual wiring system for the IoT
  - Make HTTP APIs, pubish and subscribe with MQTT
  - **hundreds** of plugins for all sorts of systems
  - eg. route your BI metrics to a custom phone app in an hour

.img-640w[![Node Red Flows](nodered_hooks.png)]
]
---
.fullpage[
## A closer look at the .red[Node-RED] flows
.img-800w[![Node Red Flows](nodered_hooks.png)]
]
1. Someone (or thing) slacks "Status for Project Icarus is green"
1. Node-red publishes `projects/icarus/status <= green`
1. A Thing subscribed to this topic receives the message
---
.left-column[
## People
### Slack
### Sending
### Receiving
### Networks
]
.right-column.small[
## Getting your Things on the Internet

* Use your guest wifi
* Use a personal hotspot
* Use your office lan with caution

```json
// credentials.json
{
	"wifi_passwords" :  {
		"Guest WiFi": "guest",
		"Alice's Phone": "margarita",
		"Bob's Phone": "daiquiri",
		"ExampleCorp Wifi": "swordfish"
	},
	"mqtt_server": "nodered.unixbigot.id.au",
	"mqtt_user": "iot",
	"mqtt_pass": "userabetterpassword",
	"slack_topic" :"slack/inject"
}
```
]
---
template: inverse
# Things

---
.left-column[
## Things
### Electronics
]
.right-column.small[
### Electronics for Noobs
* Don't panic, read [blog.unixbigot.id.au](http://blog.unixbigot.id.au/2016/09/iot-for-absolute-beginners.html)
* Ones and zeros are volts and no volts
* It's pretty much Lego bricks with wires

.img-400w[![Electronics for dogs](electronics_for_dogs.gif)]
.right.flyspeck[Image: <a href="http://otfilms.tumblr.com/post/56628205364/a-grand-day-out-1989">Out There Films</a>]
]
---
.left-column[
## Things
### Electronics
]
.right-column[
### Starter kit
* Costs about $12

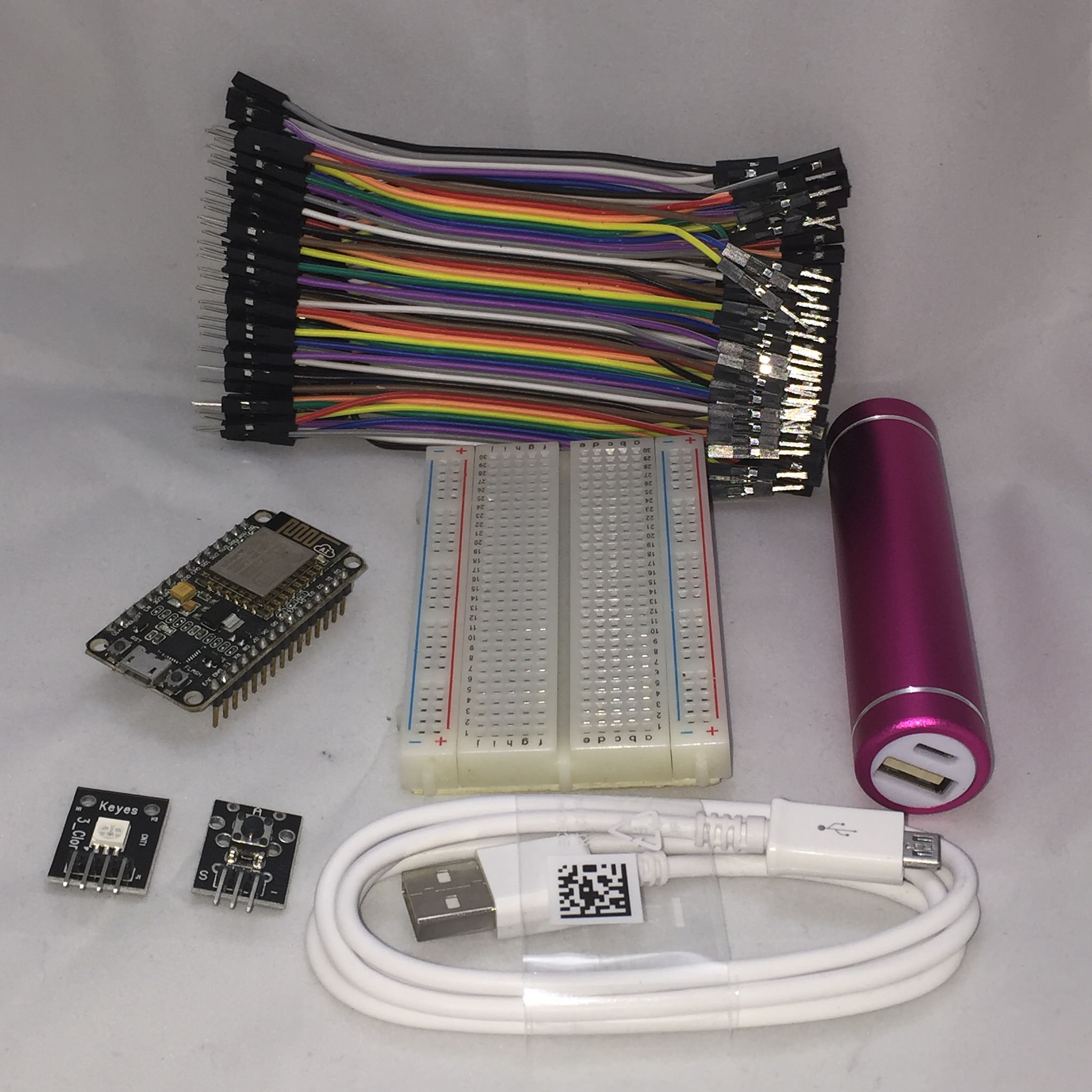

.img-400w[![IOT Starter Kit](iot_starter_kit.jpg)]
]
---
.left-column[
## Things
### Electronics
]
.right-column[
### Module extension kit
* Sample bag of IO modules - $10

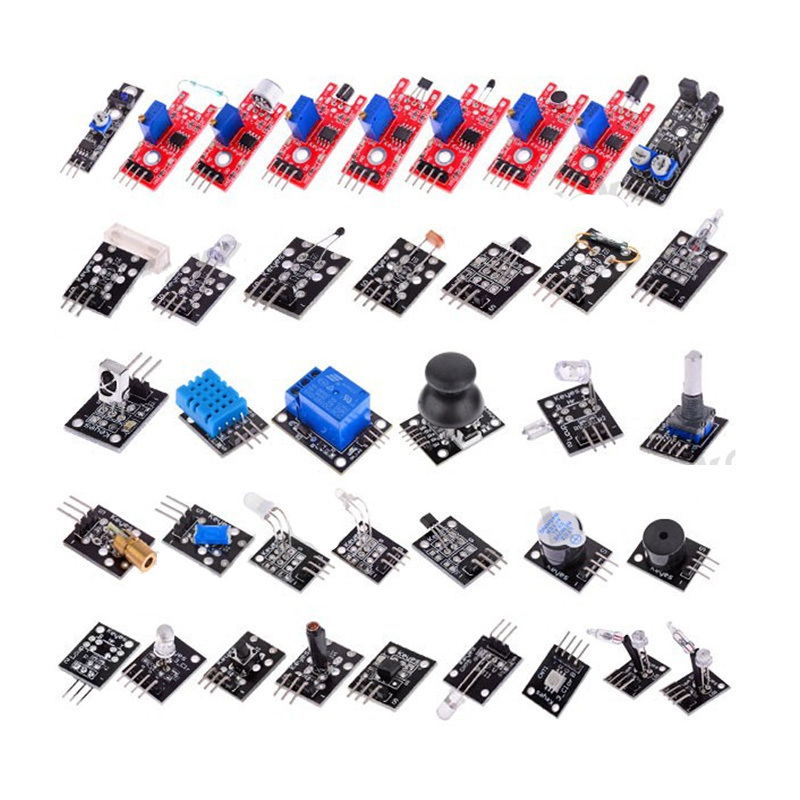

.img-400w[![IOT module Kit](iot_modules.jpg)]

]
---
.left-column[
## Things
### Electronics
]
.right-column.small[
* Powering your things
 * USB power points or power-boards
 * Phone chargers (or nearest PC)
 * Lithium power banks

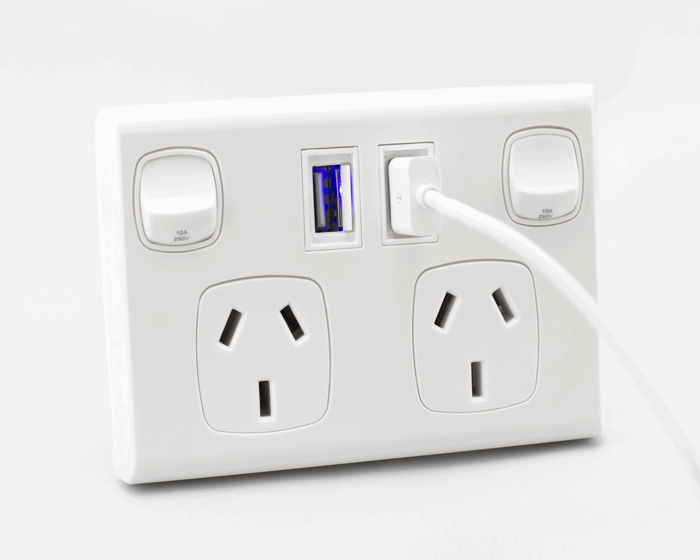

.img-250w[![USB power point](usb_power_point.png)]
.img-250w[![USB wall wart](usb_wall_wart.jpg)]

]
---
.left-column[
## Things
### Electronics
]
.right-column.small[
* Boxing your things
 * Search "project enclosure" on aliexpress.com
 * Supermarket storage containers
 * CNC cut plastic

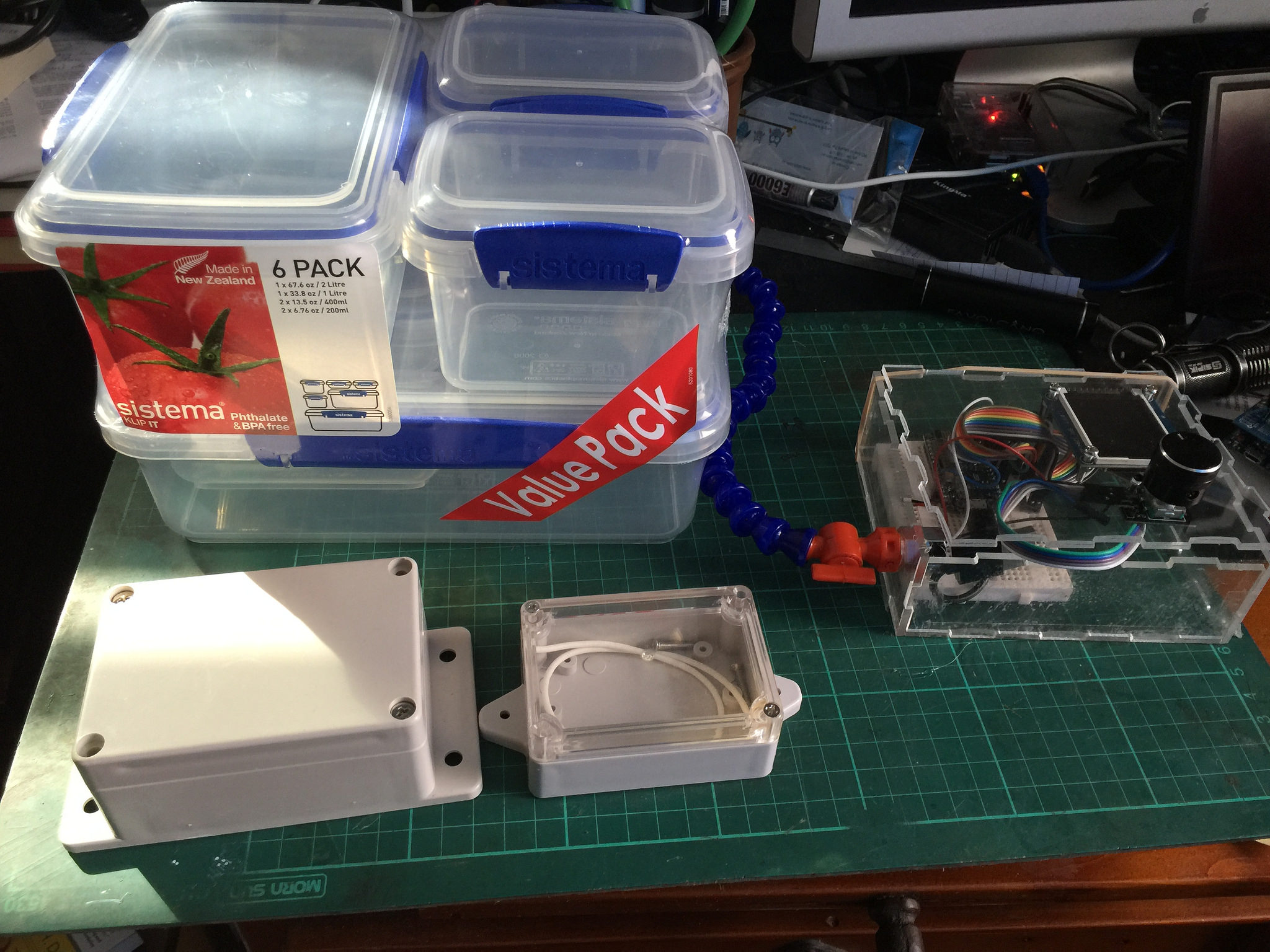

.img-500w[![Enclosures](enclosures.jpg)]
]
---
.left-column[
## Things
### Electronics
### Big Red Button
]
.right-column.small[
## The Big Red Button

```lua
function button_start()
	register_button(config.pin_button, "down", button_event)
end

function button_event(level)
	slack("Everybody Panic!!");
end

```
.img-250w[![Panic Button](panic_button.png)]
]
---
.left-column[
## Things
### Electronics
### Big Red Button
]
.right-column.nopad.small[
### Team meeting alerts

```lua
function meeting_start()
	register_button(config.pin_button, "down", meeting_button)
	mqtt_subscribe("teams/excalibur/meeting", 0, meeting_receive)
end

function meeting_button(level)
	if (meeting_state == 'idle') then
		slack("Standup meeting time!")
		mqtt_publish("teams/excalibur/meeting", "1")
		meeting_state='called'; 	flash_led(500)
	else
		slack("Meeting Ack!")
		if meeting_state == 'called' then
			mqtt_publish("teams/excalibur/meeting", "0")
		end
		meeting_state='idle';  stop_led()
	end
end

function meeting_receive(conn, topic, data)
	if (data == "1") then
		meeting_state = 'invited'; flash_led(500)
	else
		meeting_state='idle'; stop_led()
	end
end
```

]
---
.left-column[
## Things
### Electronics
### Big Red Button
### Traffic Light
]
.right-column.nopad.small[
### Project status "Traffic Lights"

```lua
function traffic_start()
	mqtt_subscribe("projects/icarus/status", 0, traffic_receive)
end

function traffic_receive(conn, topic, data)
	if data=="red" or data=="danger" then
		ws2812.write(string.char(0,0,0,0,0,0,0,255,0))
	elseif data=="amber" or data == "yellow" or data=="warning" then
		ws2812.write(string.char(0,0,0,126,255,0,0,0,0))
	elseif data=="green" or data=="good" then
		ws2812.write(string.char(255,0,0,0,0,0,0,0,0))
	end
end

```

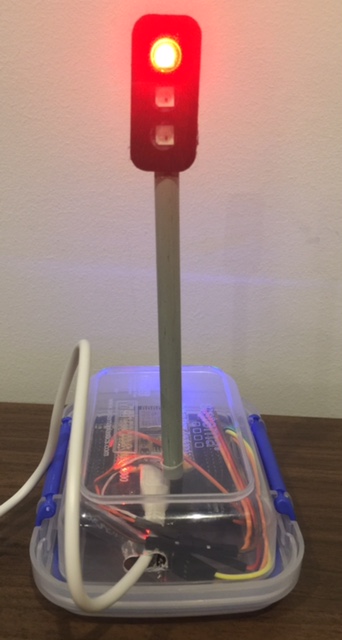

.img-250w[![Traffic Lights](traffic_lights.jpg)]
]
---
.left-column[
## Things
### Electronics
### Big Red Button
### Traffic Light
]
.right-column.nopad.center[
.img-320w[![Traffic Lights](traffic_light.gif)]
]
---
.left-column[
## Things
### Electronics
### Big Red Button
### Traffic Light
### Slacker Toast
]
.right-column.nopad.small[
## Slacker toast

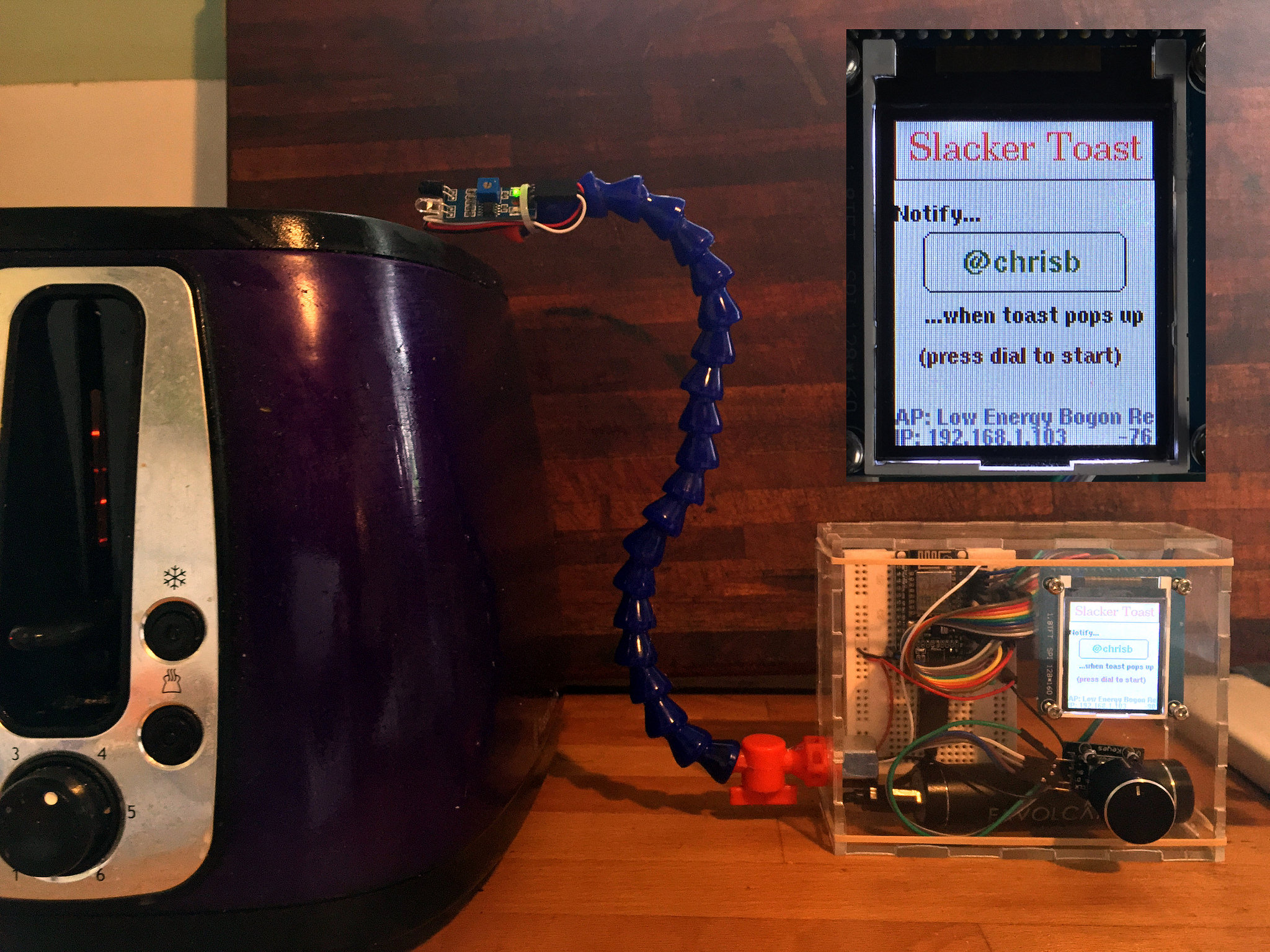

.img-640w[![Slacker toast](slacker_toast.jpg)]

]
---
template: inverse
# Conclusion
---
.left-column[
## Intro
## Hardware
## Software
## People
## Devices
## Conclusion
]
.right-column[
## Summary
* Low-cost special purpose devices
* Really easy software framework
* Use the systems you already have
* Glue misaligned parts with .red[Node-RED]
]

---
.left-column[
## Intro
## Hardware
## Software
## People
## Devices
## Conclusion
]
.right-column[
## Future
* SSL client authentication
* Integrate with AWS IoT message broker
* Serverless middleware
* Over-the-air updates
* Voice control
* Clinical testing on "reference noobs"
]

---
.right-column[
## Resources, Questions

* Code: http://github.com/unixbigot/manfred
* Tutorials: http://blog.unixbigot.id.au/
* Get in Touch:
  - Twitter: .blue[@unixbigot]
  - Email: .blue[christopher@biggs.id.au]
* Hire Me: http://christopher.biggs.id.au/
]

---
.right-column.small[
## Suppliers

* China (cheap but slow)
 - [AliExpress.com](http://aliexpress.com)
 - See the shopping lists on [my blog](http://blog.unixbigot.id.au/2016/09/iot-for-absolute-beginners.html)
* Australia
 - [Little Bird Electronics](http://littlebirdelectronics.com.au)
 - [Tronixlabs](http://tronixlabs.com.au)
* USA
 - [Adafruit](http://adafruit.com)
 - [FriedCircuits](https://www.tindie.com/products/FriedCircuits/nodemcu/)
]
