# Homebridge

Connect your legacy devices to Apple Home with NodeJS

.bottom.right[
Christopher Biggs
<br>.blue[@unixbigot]
]

???

---
.left-column[
# Agenda
]
.right-column[
#### **Homekit**:
* Accessories, Bridges, Scenes, oh my

#### **Homebridge**:
* **Why** is Homebridge needed?
* **How** do I use it?
* **What** can I do with it?

#### **Developing**:
* Homekit plugins
* Node-RED Accessories
]

???

---

.left-column[
#Intro
## Landscape
]
.right-column.nopad[
## Home automation frameworks

* Various incumbents (Nine billion separate apps)
* Amazon - Echo, Echo Dot and Dash (Alexa)
* Google - Google Home (OK Google)
* Apple - HomeKit (Hey Siri)

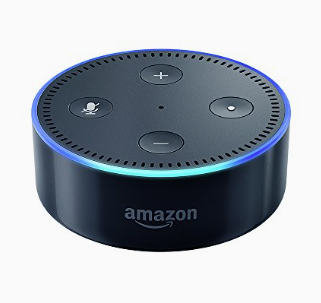

.img-250w[![Amazon Echo Dot](amazon_dot.png)]

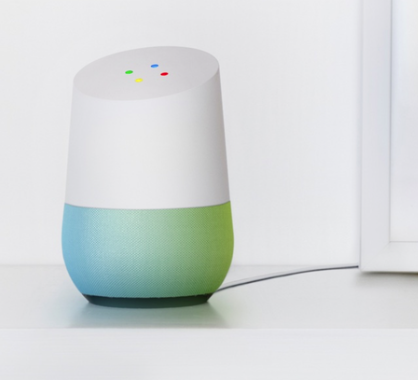

.img-250w[![Google Home](google_home.png)]

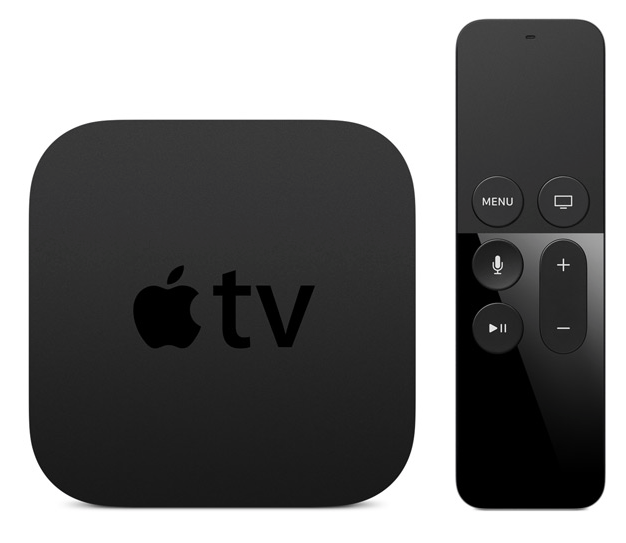

.img-250w[![Apple TV](apple_tv.png)]
]
---

.left-column[
#Intro
## Landscape
## Concepts
]
.right-column.nopad[
# Apple Homekit

* Lights, Locks, Sensors, Alarms, Switches, Thermostats and more
* Representative devices in [apple store](http://www.apple.com/shop/accessories/all-accessories/homekit)
* Any developer can implement apps
* Only Made-for-iPhone program members can implement accessories
* MFI is not open to individuals
* Accessory protocol reverse-engineeried
 * NDAs and DMCA takedowns

]
---

.left-column[
#Intro
## Landscape
## Concepts
]
.right-column.nopad[
# Terminology in Homekit

* **Accessories** - things you can interact with
* **Bridges** - Connect to a bunch of accessories
* **Scenes** - preconfigured sets of accessory changes
  * Reconfigure the house in one command
* **Triggers** - contextual activation of Scenes
  * Requires an AppleTV or iPad
* Accessories can be grouped into **Rooms**
* Rooms can be grouped into **Zones**
]
---
.left-column[
#Intro
## Landscape
## Concepts
## Interacting
]
.right-column.nopad[
# Interacting with HomeKit devices

* iOS **Home** App
  * Status at a glance
  * Create scenes or triggers
* iOS **Control Centre**
  * Quick access to favourite accessories and scenes
* **Siri** Voice Assistant
]
---
.left-column[
#Intro
## Landscape
## Concepts
## Interacting
]
.right-column.nopad[

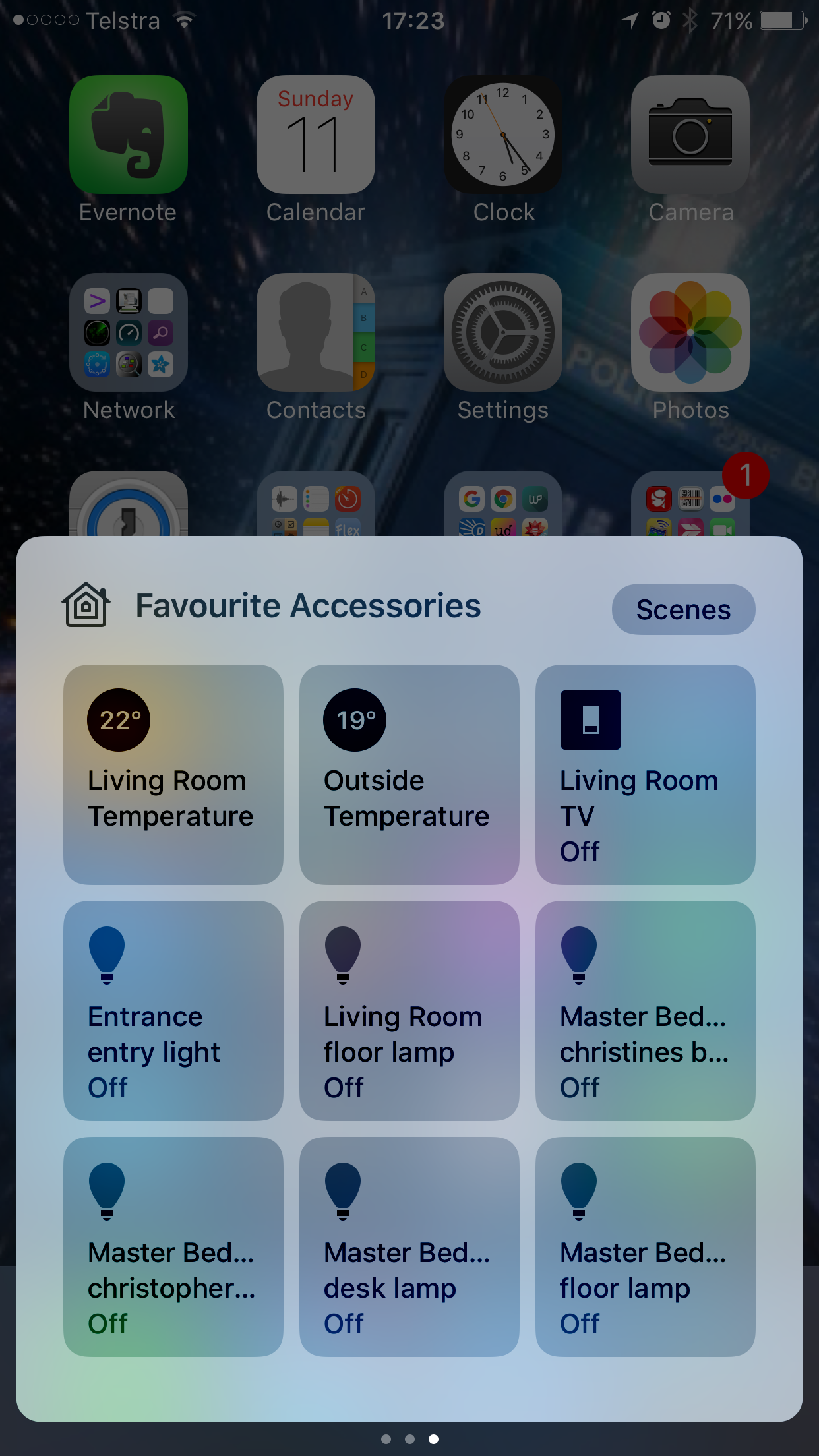

.img-320w[![Home App](home_app.png)]
.img-320w[![Control Center](home_control.png)]
]
---
.left-column[
#Intro
## Landscape
## Concepts
## Interacting
]
.right-column.nopad[

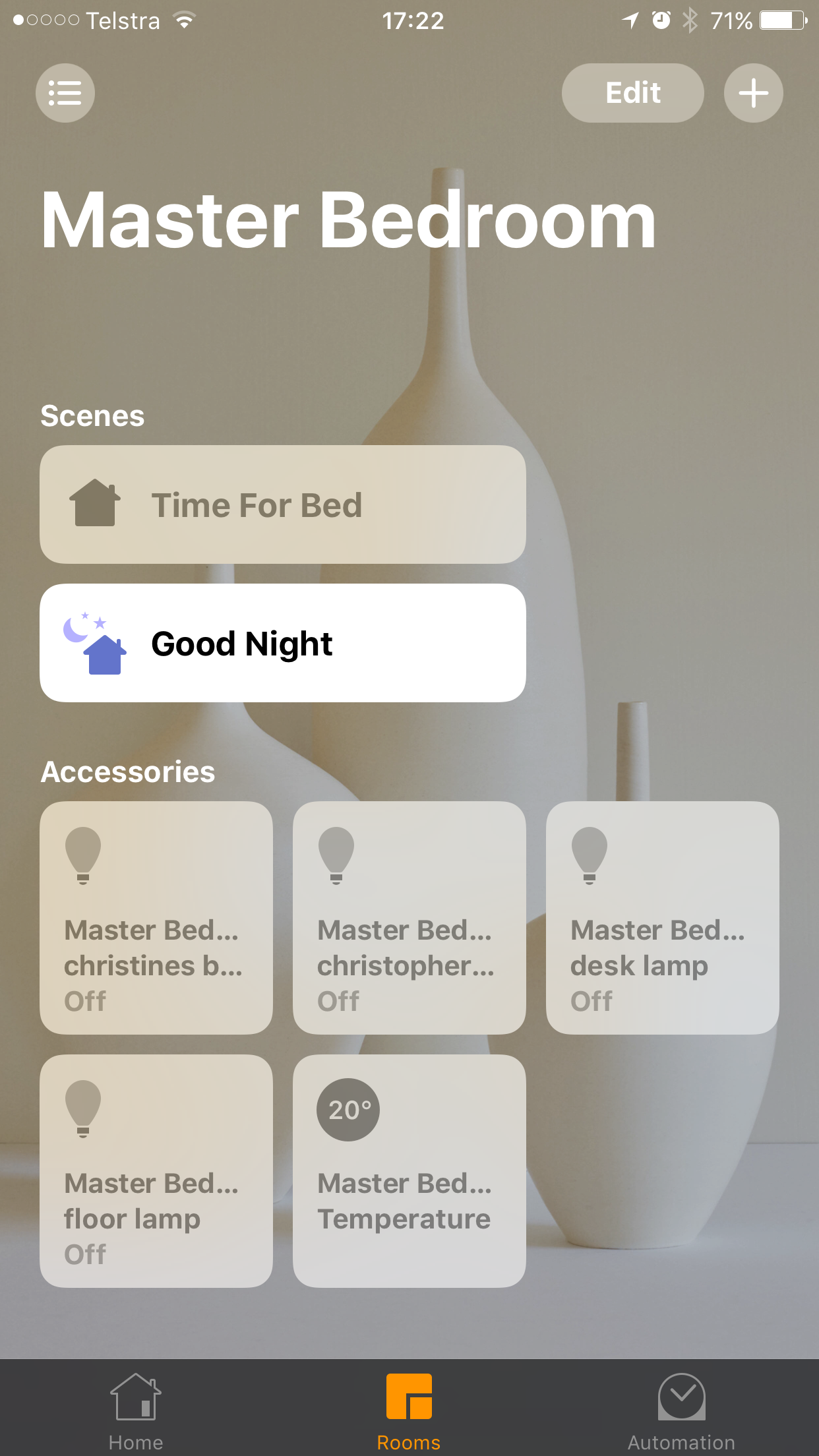

.img-320w[![Master Bedroom](home_bedroom.png)]

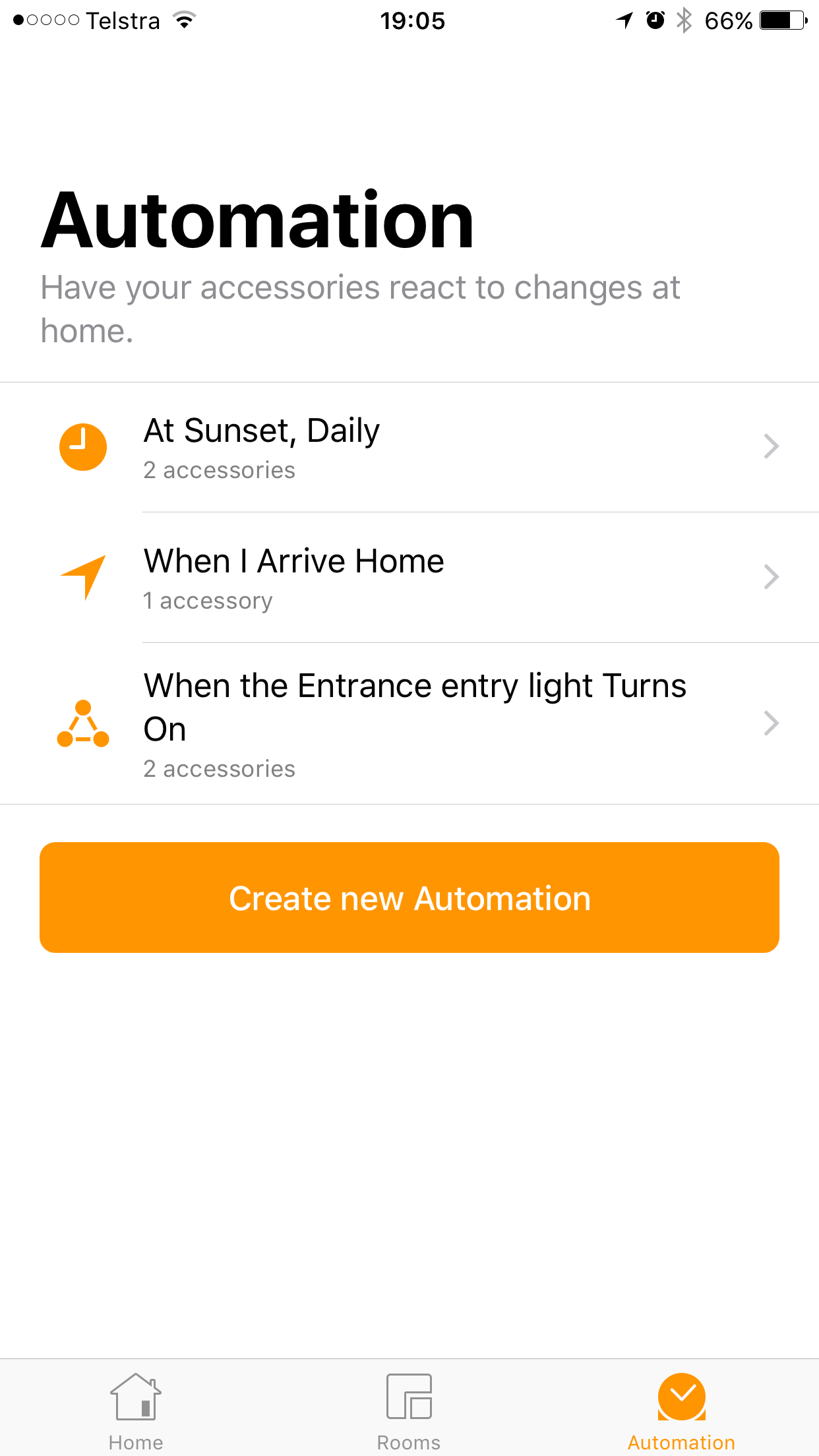

.img-320w[![Triggers](home_triggers.png)]
]
---
.left-column[
#Intro
## Landscape
## Concepts
## Interacting
]
.right-column.nopad[
# Voice Interaction (Siri)

* "Turn on the **lamp** in the **study**" (accessory in room)
* "Turn off all the lights **downstairs**" (zones)
* "Dim the **dining room lights** to 50%"
* "Switch off the **pool filter**"
* "Let's watch a movie" (scene activation)
* "What's the temperature in **the Baby's room**?"

]
---
.left-column[
# Homebridge
## Why?
]
.right-column.nopad[
# So, you want to be a Supervillain?
* All this is great if you have infinite money
* You probably have some *Not-Completely-Dumb* Appliances already
  * Garage doors
  * Smart TVs
  * Security alarms and IP cameras
  * Remote power boards
  * Anything with an IR remote (fans, aircon, AV Equipment)
]
---
.left-column[
# Homebridge
## Why?
## How?
]
.right-column.nopad[
# Enter Homebridge
## Present non-HomeKit devices as HomeKit Accessories
* NodeJS server
* Implements a Bridge to Accessories (or Platforms)
* Over 350 Accessory plugins
* Installable on Mac, Linux (incl Pi), Windows*
]
---
.left-column[
# Homebridge
## Why?
## How?
]
.right-column.nopad[
# Installing Homebridge
* Thorough instructions for all platforms in Wiki
* For Linux:
  * `$ sudo npm install -g --unsafe-perm homebridge`
  * `$ sudo npm install -g homebridge-someplugin`
  * `$ vi config.json`

]
---
.fullpage.small[
```json
{
    "bridge": {
        "name": "Homebridge",
        "pin": "031-45-154"
    },
    "description": "Serendipity HomeBridge",
    "accessories": [
        {
            "accessory": "mqttswitch",
            "name": "living room floor lamp",
            "url": "http://192.168.1.21:1883/",
            "caption": "floor lamp in the living room",
            "topics": {
                "statusGet":    "lights/livingroom/lamp1",
                "statusSet":    "lights/livingroom/lamp1"
            },
        }, {
            "accessory": "TV",
            "name": "TV",
            "description": "Damned Television",
            "ip": "192.168.1.103"
        }, {
            "accessory": "mqtt-temperature",
            "name": "Living Room Temperature",
            "url": "http://192.168.1.21:1883/",
            "topic": "sensors/livingroom/temp/ambient"
        }
    ]
}
```
]
---
.left-column[
# Homebridge
## Why?
## How?
]
.right-column.nopad[
* Any existing Mac, Windows or Linux PC
* Raspberry Pi, AUD$70 plus case

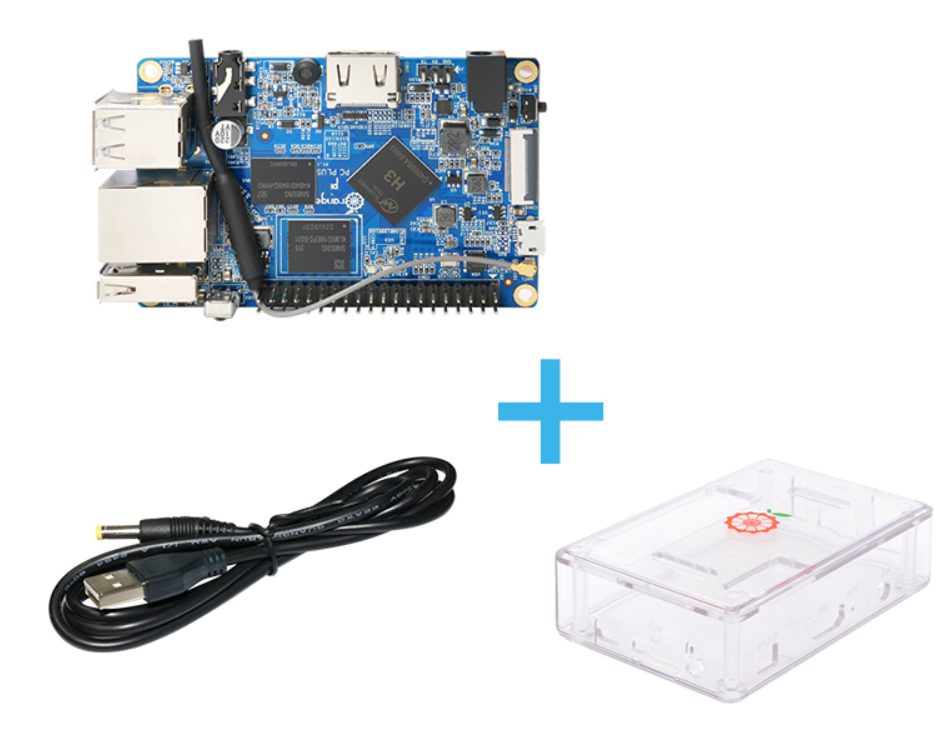

* Orange Pi PC Plus, AUD$40 with case
* Orange Pi Lite AUD$20
* Orange Pi Zero AUD$15

.img-400w[![Orange Pi](orange_pi_pc_plus.png)]

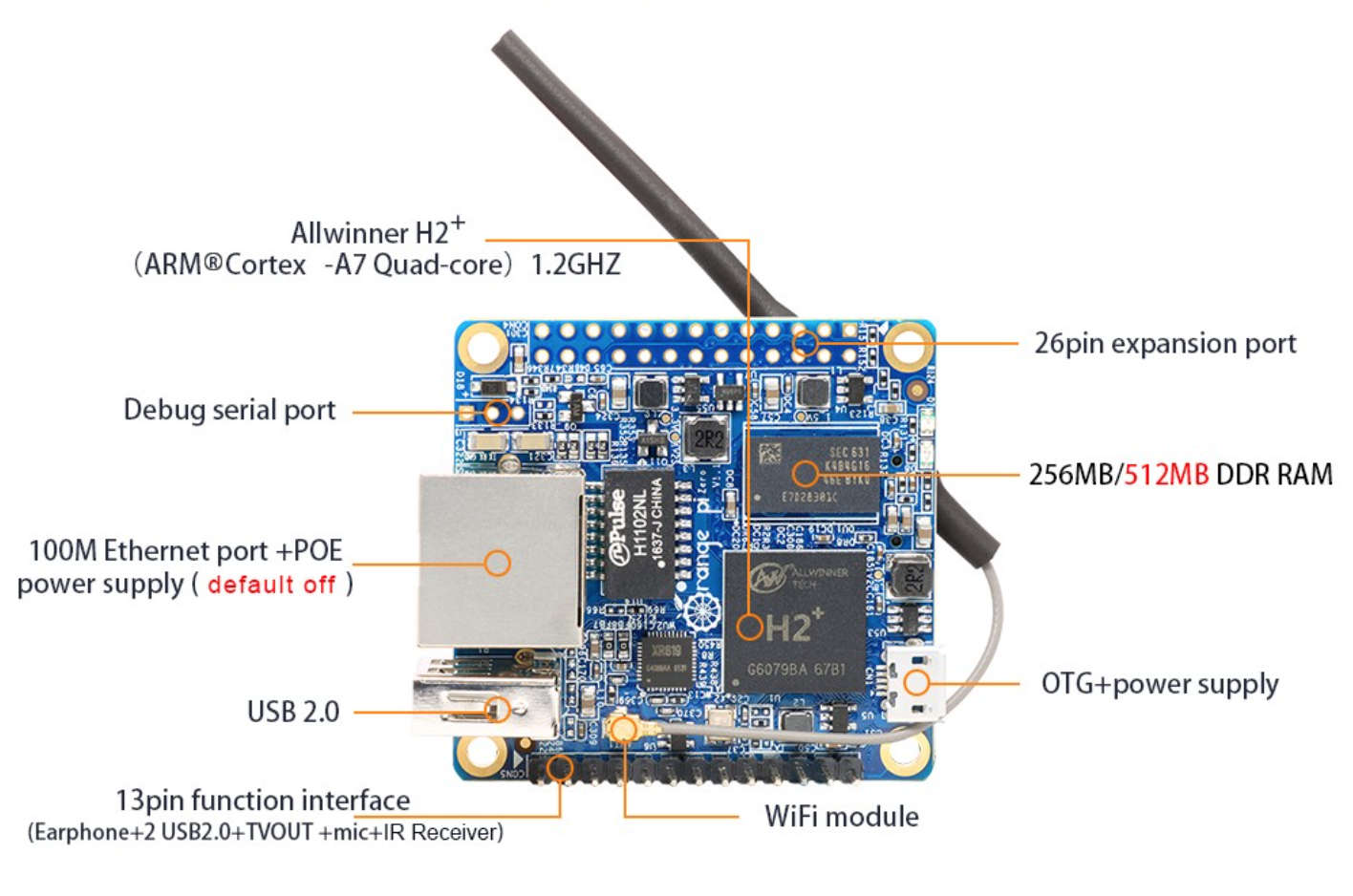

.img-320w[![Orange Pi Zero](orange_pi_zero.png)]
]
---
.left-column[
# Homebridge
## Why?
## How?
## What?
]
.right-column.nopad[
# What can I interface to?
* TVs and HiFi
* Other HA platforms: **Hue** lights, **Wemo** switches, **Nest** thermostats etc.
* Computers
* People (presence detection)
* Bluetooth switches
* Anything with an infrared or RC remote
* Sensors: Light, Motion, Temperature, Gas
* IP Cameras
]
---
.left-column[
# Homebridge
## Why?
## How?
## What?
]
.right-column.nopad[
## Start by looking for an existing plugin

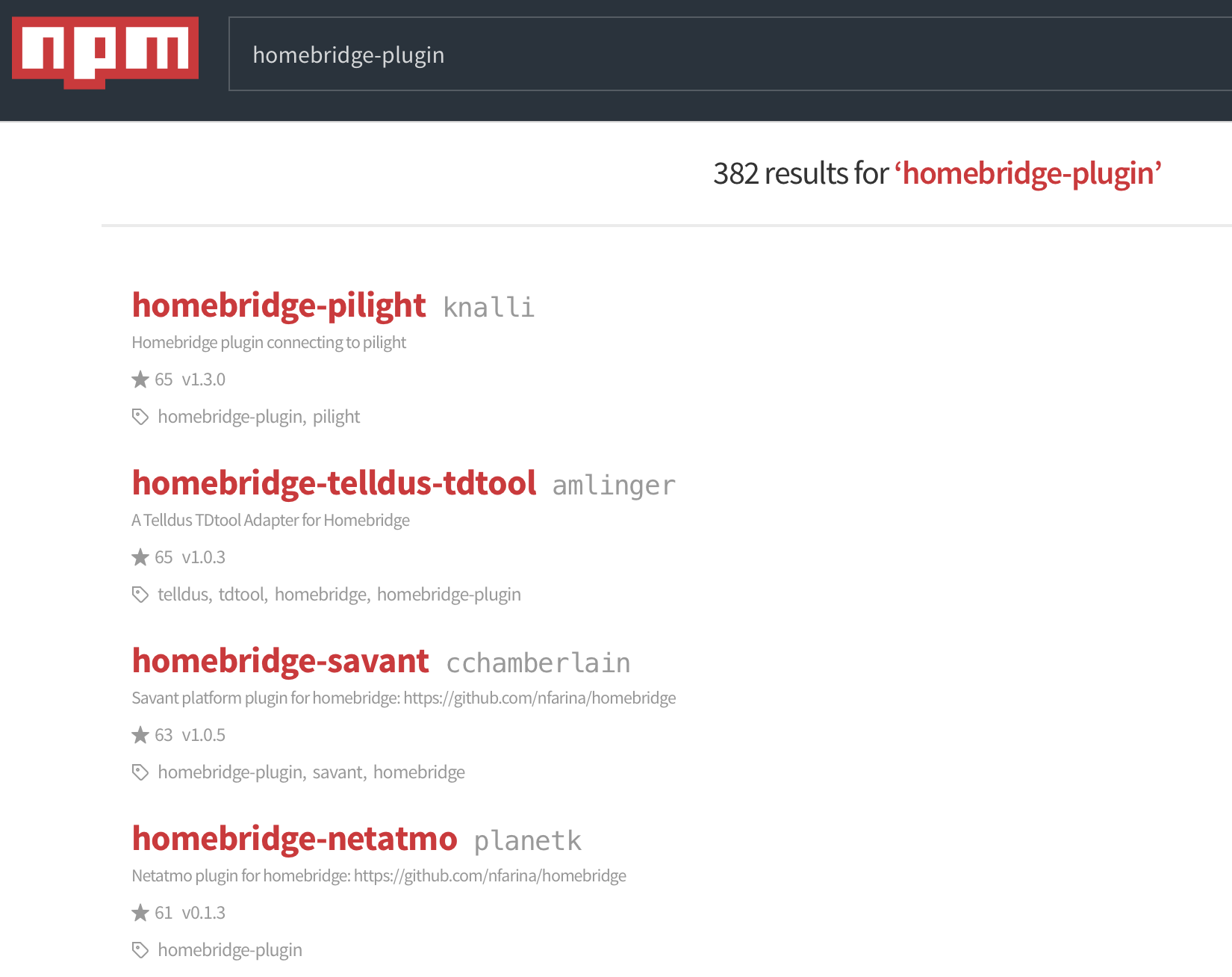

.img-500w[![Homebridge plugins](homebridge_plugins.png)]
]
---
.left-column[
# Homebridge
## Why?
## How?
## What?
]
.right-column.nopad[
## No Plugin, What now?
* Generic MQTT Control (`mqttswitch` plugin)
* Generic MQTT Sensors (`mqtt-temperature` plugin et.al.)
* Write your own Homebridge plugins.
* Implement sensors and accesories in Node-RED.
]
---
.left-column[
#Development
## Concepts
]
.right-column.nopad[
## More Terminology

* Services - An interface offered by an accessory
* Characteristics - A mandatory or optional component of a service
  * metadata: format, units, min, max, step
* Perms - READ, WRITE or NOTIFY

* Example - Lightbulb service
  * Mandatory characteristic: "On"
  * Optional Characteristics: "Brightness", "Hue", "Saturation", "Name"
]
---
.left-column[
#Development
## Concepts
## Services
]
.right-column.nopad[
## Service Types

* Air Quality, CO, CO2, Smoke, Leak
* Battery
* Camera, Video stream, Motion sensor, Occupancy sensor, Daylight
* Door, Doorbell, Lock, Garage Door Opener
* Lightbulb, Fan, Speaker, Microphone
* Switch, Power window, Power shutters
* Security system, Contact sensor
* Thermostat, Temperature, Humidity
* various others
]
---
.left-column[
#Development
## Concepts
## Services
## Characteristics
]
.right-column.nopad[
## Characteristics
```javascript
Characteristic.Brightness = function() {
  Characteristic.call(this, 'Brightness', '00000008-0000-1000-8000-0026BB765291');
  this.setProps({
    format: Characteristic.Formats.INT,
    unit: Characteristic.Units.PERCENTAGE,
    maxValue: 100,
    minValue: 0,
    minStep: 1,
    perms: [Characteristic.Perms.READ, Characteristic.Perms.WRITE, Characteristic.Perms.NOTIFY]
});
```

```javascript
Characteristic.CurrentDoorState = function() {
  Characteristic.call(this, 'Current Door State', '0000000E-0000-1000-8000-0026BB765291');
  this.setProps({
    format: Characteristic.Formats.UINT8,
    perms: [Characteristic.Perms.READ, Characteristic.Perms.NOTIFY]
  });

// The value property of CurrentDoorState must be one of the following:
Characteristic.CurrentDoorState.OPEN = 0;
Characteristic.CurrentDoorState.CLOSED = 1;
Characteristic.CurrentDoorState.OPENING = 2;
Characteristic.CurrentDoorState.CLOSING = 3;
Characteristic.CurrentDoorState.STOPPED = 4;
```
]
---
.left-column[
#Development
## Concepts
## Services
## Characteristics
## Plugins
]
.right-column.nopad[
## Implementing a plugin - Binding characteristics
```javascript

module.exports = function(homebridge) {
  Service = homebridge.hap.Service;
  Characteristic = homebridge.hap.Characteristic;

  homebridge.registerAccessory("homebridge-lockitron", "Lockitron", LockitronAccessory);
}

function LockitronAccessory(log, config) {
  this.log = log;
  this.name = config["name"];
  this.accessToken = config["api_token"];
  this.lockID = config["lock_id"];

  this.service = new Service.LockMechanism(this.name);

  this.service
    .getCharacteristic(Characteristic.LockCurrentState)
    .on('get', this.getState.bind(this));

  this.service
    .getCharacteristic(Characteristic.LockTargetState)
    .on('get', this.getState.bind(this))
    .on('set', this.setState.bind(this));
}
```
]
---
.left-column[
#Development
## Concepts
## Services
## Characteristics
## Plugins
]
.right-column.nopad[
## Implementing a plugin - Characteristic callbacks
```javascript

LockitronAccessory.prototype.getState = function(callback) {
  this.log("Getting current state...");

  request.get({
    url: "https://api.lockitron.com/v2/locks/"+this.lockID,
    qs: { access_token: this.accessToken }
  }, function(err, response, body) {

    if (!err && response.statusCode == 200) {
      var json = JSON.parse(body);
      var state = json.state; // "lock" or "unlock"
      this.log("Lock state is %s", state);
      var locked = state == "lock"
      callback(null, locked); // success
    }
    else {
      this.log("Error getting state (status code %s): %s", response.statusCode, err);
      callback(err);
    }
  }.bind(this));
}

```
]
---
.left-column[
#Development
## Concepts
## Services
## Characteristics
## Plugins
## Node-RED
]
.right-column.nopad[
## Building Accessories with Node-RED

.img-550w[![Node-RED Homekit module](nodered_homekit.gif)]
]
---
.left-column[
#Development
## Concepts
## Services
## Characteristics
## Plugins
## Node-RED
]
.right-column.nopad[

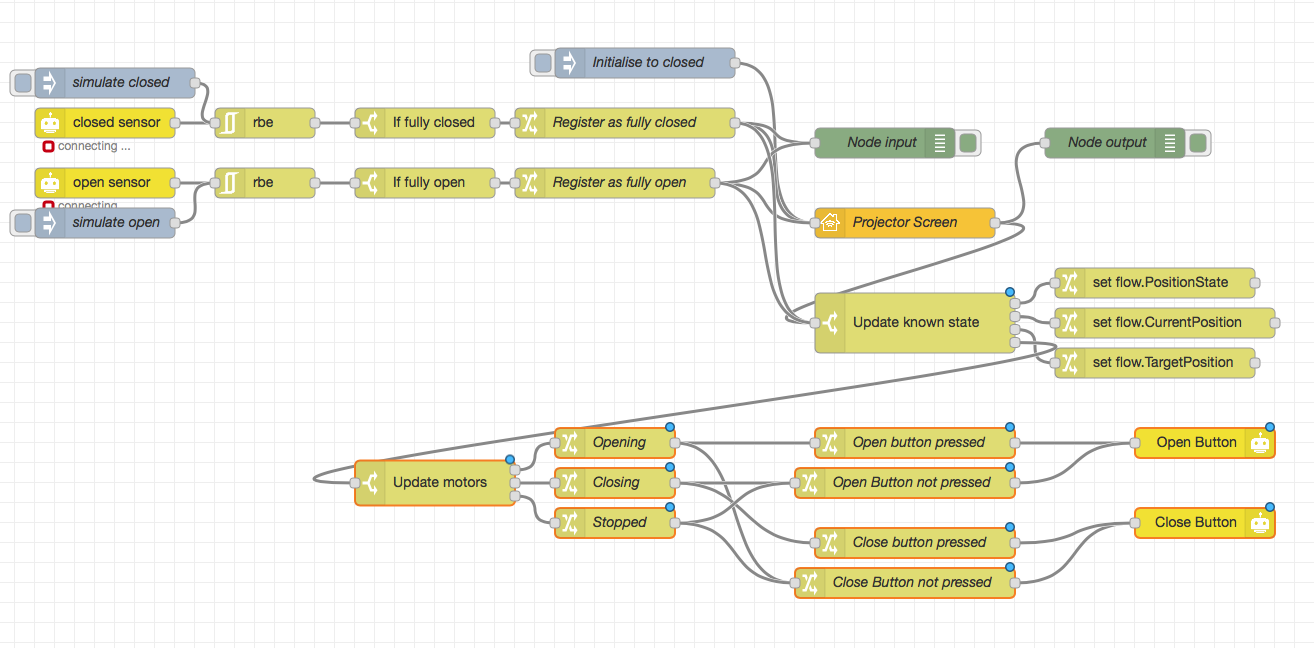

## Projector Screen MacGyver Hack

.img-800w[![Node-RED Homekit module](nodered_projector.png)]
]
---
.left-column[
# Recap
]
.right-column.nopad[
# Recap
* Apple is slightly less open, but actually available
* Concepts: Accessories, Scenes and Triggers
* Homebridge supports hundreds of incumbent devices
* Host it on a PC or Single-Board Computer
* Building a plugin: Services and Characteristics
* Node-RED for MacGyver tricks
]
---
.left-column[
# Recap
# Q+A
]
.right-column.nopad.small[
## Resources, Questions

* **Homebridge**
  - [github: /nfarina/homebridge](https://github.com/nfarina/homebridge)
  - [github: /KhaosT/HAP-NodeJS](https://github.com/KhaosT/HAP-NodeJS)
  - [npm: Search "homebridge-plugin"](https://www.npmjs.com/search?q=homebridge-plugin)
  - [npm: node-red-contrib-homekit](https://flows.nodered.org/node/node-red-contrib-homekit)
  - Raspberry Pi: [raspberry.piaustralia.com.au](http://raspberry.piaustralia.com.au/)
  - Orange Pi: [Shenzen Xunlong](https://www.aliexpress.com/store/1553371)

* **Me - Christopher Biggs**
  - Twitter: .blue[@unixbigot]
  - Email: .blue[christopher@biggs.id.au]
  - Hire Me: http://christopher.biggs.id.au/
]
